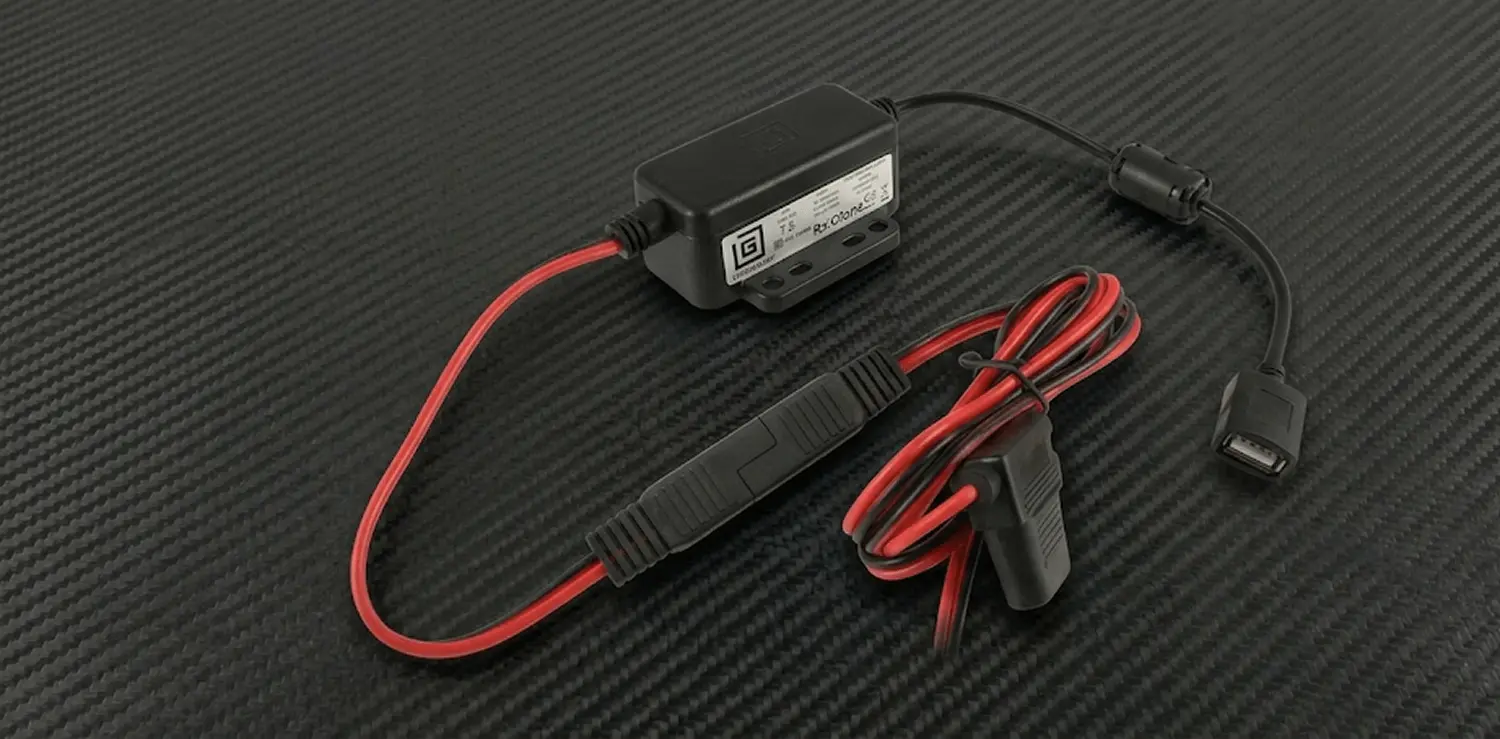

GDS USB-A Hardwire Charger RAM-GDS-CHARGE-V7B1U
The RAM-GDS-CHARGE-V7B1U is a GDS® Modular 10-30V Hardwire Charger with a female USB Type-A connector. This GDS USB-A Hardwire Charger provides power to compatible GDS vehicle solutions and supports 5V devices requiring a current of 2.5A or less. Its quick-disconnect design allows compatible USB Type-A charging cables to be connected, while the modular design lets users replace charger components during upgrades without rewiring the power connection.
What Is RAM-GDS-CHARGE-V7B1U?
RAM-GDS-CHARGE-V7B1U is a GDS Modular Hardwire Charger designed to provide power to GDS vehicle solutions. The charger accepts a 10–30VDC input and provides a 5–9VDC output with a maximum output current of 2.5A.
The charger uses a female USB Type-A connector and supports compatible USB Type-A charging cables. It also uses a quick-disconnect design, giving the charger a modular connection for compatible applications.
For device compatibility, RAM Mounts specifies this charger for any 5V device with a current requirement of 2.5A or less.
Key Features of the GDS USB-A Hardwire Charger
The RAM-GDS-CHARGE-V7B1U includes the following verified features:
- Female USB Type-A connector
- 10–30VDC input voltage
- 5–9VDC output voltage
- 2.5A maximum output current
- Quick-disconnect design
- Modular charger components for upgrades without rewiring the power connection
- Part of the GDS® Ecosystem™
- Over-voltage protection
- Short-circuit protection
- Reverse-polarity protection
- Moisture resistance
- RoHS and WEEE compliance
- SAE J-1113-5 Load Dump compliance
- 3-year warranty
Compatibility of RAM-GDS-CHARGE-V7B1U
The official compatibility information identifies RAM-GDS-CHARGE-V7B1U for GDS vehicle solutions.
It is also specified as compatible with any 5V device that has a current requirement of 2.5A or less. This provides a clear device-level compatibility condition without limiting the charger to a specific tablet, phone, computer, or other device model.
No specific IntelliSkin sleeve or device model is identified for this charger, so the product should not be presented as a device-specific IntelliSkin accessory.
How the USB-A Hardwire Charger Works
The charger accepts 10–30VDC input and provides regulated output for compatible applications. Its female USB Type-A connector allows a compatible USB Type-A charging cable to connect to the charger.
The quick-disconnect design is an important part of the modular configuration. When compatible equipment is upgraded, the power connector can be unplugged and new charger components can be attached without rewiring the power connection.
The output specification is listed as 5–9VDC with a maximum current of 2.5A.
USB Type-A Connection
The charger includes a female USB Type-A connector. This allows a compatible USB Type-A charging cable to connect to the hardwire charger.
The official product information also specifies that 5V output uses USB 2.0 BC1.2 and DCP mode, while 9V output uses AFC and QC 2.0.
10–30VDC Input and 5–9VDC Output
RAM-GDS-CHARGE-V7B1U is designed for a 10–30VDC input range.
Its specified output is 5–9VDC with a maximum output current of 2.5A. These electrical specifications should be considered when determining whether the charger is appropriate for a particular device or GDS vehicle solution.
The charger should only be used with applications that meet the stated electrical requirements.
Modular Design for GDS Vehicle Solutions
The GDS USB-A Hardwire Charger is part of the GDS Ecosystem and uses a modular design.
When compatible devices or charger components need to be upgraded, the power connector can be unplugged and new charger components can be attached without rewiring the power connection.
This modular approach is a documented feature of the product and distinguishes the charger from a conventional fixed power connection.
Cable and Connector Specifications
RAM-GDS-CHARGE-V7B1U includes a female USB Type-A connector and specified cable lengths for its power connection.
The input cable measures 1.2 meters, including the 2 Pole Flat Marine Connector. The output cable length is specified as 0.2 meters.
Connector Details
- Input voltage: 10–30VDC
- Output voltage: 5–9VDC
- Maximum output current: 2.5A
- Female USB Type-A connector
- Input cable: 1.2 meters, including 2 Pole Flat Marine Connector
- Output cable: 0.2 meters
- Packaging: Poly Bag
Protection and Regulatory Features
The charger includes several documented protection and compliance features.
These include:
- Over-voltage protection
- Short-circuit protection
- Reverse-polarity protection
- Moisture resistance
- RoHS compliance
- WEEE compliance
- SAE J-1113-5 Load Dump (Transient Voltage)
The product is also listed with FCC, CE, UKCA, and IC regulatory information.
Operating and Storage Temperature
RAM-GDS-CHARGE-V7B1U has a specified operating temperature range of -10°C to +70°C.
Its storage temperature range is -40°C to +70°C.
These specifications define the temperature ranges provided by the manufacturer for operation and storage.
Certifications and Warranty
The GDS Modular Hardwire Charger carries the following listed certifications:
- E-Mark Certification
- RCM Certification
- IEC/UL 62368-1
The product also includes a 3-year warranty.
These details help identify the documented compliance and warranty information associated with RAM-GDS-CHARGE-V7B1U.
Technical Specifications
| Specification | Details |
| SKU | RAM-GDS-CHARGE-V7B1U |
| Product Type | GDS Modular Hardwire Charger |
| Packaging | Poly Bag |
| Input Voltage | 10–30VDC |
| Output Voltage | 5–9VDC |
| Output Current | 2.5A max |
| Input Connector | Female USB Type-A |
| Input Cable Length | 1.2 meters including 2 Pole Flat Marine Connector |
| Output Cable Length | 0.2 meters |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Weight | 0.31 lb |
| Warranty | 3 years |
Additional Output Information
The manufacturer specifies that 5V output is provided through USB 2.0 BC1.2 and DCP mode. The 9V output is provided through AFC and QC 2.0.
Why Choose RAM-GDS-CHARGE-V7B1U?
The documented benefits of this GDS modular charger are centered on its connection and upgrade design.
The female USB Type-A connector supports compatible USB Type-A charging cables, while the quick-disconnect design makes it possible to replace charger components without rewiring the power connection during compatible upgrades.
The charger also provides a 10–30VDC input range, 5–9VDC output, 2.5A maximum output current, and several documented protection features.
Its 3-year warranty and listed certifications provide additional product information for buyers evaluating this GDS power accessory.
Frequently Asked Questions
RAM-GDS-CHARGE-V7B1U is a GDS Modular 10-30V Hardwire Charger with a female USB Type-A connector.
The charger accepts 10–30VDC input and provides 5–9VDC output.
The maximum specified output current is 2.5A.
RAM Mounts specifies compatibility with any 5V device that requires a current of 2.5A or less, as well as GDS vehicle solutions.
Yes. RAM-GDS-CHARGE-V7B1U includes a female USB Type-A connector for compatible USB Type-A charging cables.
Yes. Its documented modular design allows the power connector to be unplugged and new charger components to be attached during upgrades without rewiring the power connection.
RAM-GDS-CHARGE-V7B1U is backed by a 3-year warranty.
