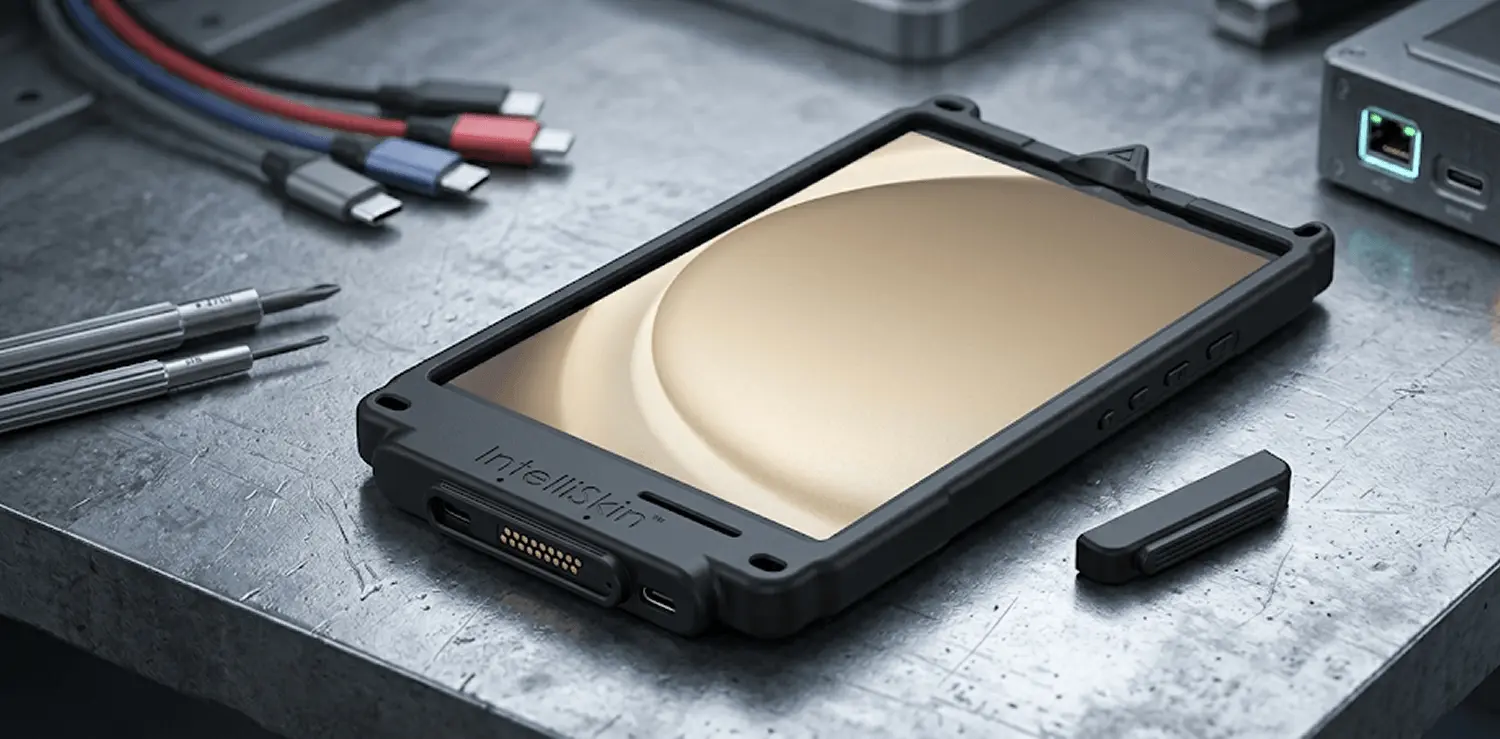

Samsung A9 IntelliSkin Sleeve RAM-GDS-SKIN-SAM95-NG

The Samsung A9 IntelliSkin Sleeve, SKU RAM-GDS-SKIN-SAM95-NG, provides a protective docking solution specifically for the Samsung Galaxy Tab A9. The IntelliSkin® Next Gen combines a hard plastic shell with soft, shock-absorbing rubber and provides MIL-STD-810H military-grade drop protection.

The sleeve integrates a GDS® connector with flat, ruggedized contacts for repetitive docking. It also provides an external USB Type-C port for charging when a GDS® Dock™ is unavailable. A protective USB-C cap helps keep debris away from the port during field use.

With support for charging and data synchronization, IntelliSkin® Next Generation docks, and a variety of GDS Docks™ and accessories, this sleeve connects the Galaxy Tab A9 to the GDS ecosystem while keeping the tablet protected.

What Is the Samsung A9 IntelliSkin Sleeve?

The RAM-GDS-SKIN-SAM95-NG is an IntelliSkin® Next Gen protective sleeve designed specifically for the Samsung Galaxy Tab A9.

The sleeve combines a hard plastic shell with soft, shock-absorbing rubber. This construction provides military-grade drop protection while incorporating the GDS connection directly into the protective sleeve.

The integrated GDS connector also helps protect the tablet’s charging port during repetitive docking. This design lets users connect the Galaxy Tab A9 to compatible GDS docking equipment without repeatedly exposing the device’s original charging connection.

Protective Construction for the Galaxy Tab A9

The Samsung A9 Protective Sleeve uses polycarbonate and thermoplastic elastomers to create a protective enclosure around the tablet.

The hard plastic shell provides the structural layer, while the soft rubber component adds shock absorption. Together, these materials support the sleeve’s MIL-STD-810H military-grade drop protection.

RAM Mounts specifically lists this protection for demanding environments, making the sleeve suitable for users who need a more rugged enclosure for the Galaxy Tab A9.

Flat GDS Contacts for Repetitive Docking

The sleeve features an integrated GDS connector with flat, ruggedized contacts.

These contacts support repetitive docking while the flat design helps collect less dirt and makes cleaning easier. This can help maintain the docking connection when users regularly move the tablet between compatible GDS docking stations.

The GDS connector also provides charging and data synchronization capabilities through compatible GDS equipment.

Protect the Galaxy Tab A9 Charging Port

The GDS connector sits directly within the IntelliSkin® and helps protect the tablet’s charging port from damage associated with repetitive docking.

Instead of repeatedly connecting docking equipment directly to the tablet, users can connect through the sleeve’s integrated GDS interface.

This approach combines device protection with the connectivity needed for a docked Galaxy Tab A9 setup.

External USB-C Charging Without a GDS Dock

The Tab A9 GDS Sleeve includes an external USB Type-C port that provides another way to charge the tablet.

When a GDS® Dock™ is unavailable, users can connect a USB-C charging cable through the sleeve’s external port. The connection supports data transfer at up to USB 2.0 speeds of 480 Mbps.

The port also gives users a practical charging option without removing the IntelliSkin® from the Galaxy Tab A9.

Protective USB-C Cap Helps Keep Debris Out

The IntelliSkin® includes a protective cap for the external USB-C port.

The cap helps prevent debris from accumulating around the USB-C connection over time. This feature becomes particularly useful when users operate the tablet in field environments where dust and other debris can reach exposed ports.

The product also includes four optional USB Type-C caps as listed in the hardware specifications.

Charging and Data Synchronization Through GDS

The GDS connector and docking contacts provide charging and data synchronization capabilities with compatible GDS docking solutions.

A universal positioning marker supports compatibility with IntelliSkin® Next Generation docks. This allows the Galaxy Tab A9 to connect with compatible docking equipment while remaining inside its protective sleeve.

The combination of the GDS connector, docking contacts, and protective sleeve creates a dedicated interface between the tablet and compatible GDS equipment.

Up to 5 Gbps Through D-Shape Contacts

The Samsung A9 USB C IntelliSkin supports transfer speeds of up to USB 3.1 at 5 Gbps through the D-Shape contacts.

The external USB-C connection supports up to USB 2.0 at 480 Mbps.

RAM Mounts notes that USB 3.1 at 5 Gbps represents the maximum transfer speed that the IntelliSkin® can support. Actual transfer speeds can vary depending on the selected docks, chargers, and device limitations.

Compatibility With IntelliSkin Next Generation Docks

The Samsung Galaxy Tab A9 sleeve includes a universal positioning marker that supports compatibility with IntelliSkin® Next Generation docks.

This compatibility allows users to keep the Galaxy Tab A9 inside the IntelliSkin® while connecting it to supported docking equipment.

The sleeve also works with a variety of GDS Docks™ and accessories, allowing users to build a compatible GDS setup around the tablet.

Connect the Tab A9 to the GDS Ecosystem

The RAM-GDS-SKIN-SAM95-NG forms part of the broader GDS® ecosystem for the Samsung Galaxy Tab A9.

RAM Mounts lists compatible GDS accessories and docking solutions for the Tab A9. These include GDS® Uni-Conn™ components and GDS docking products that work with the IntelliSkin® Next Gen sleeve.

This gives users options for building a Galaxy Tab A9 setup around the sleeve and compatible GDS equipment.

Samsung Galaxy Tab A9 Dimensions

The IntelliSkin® Next Gen has the following overall dimensions:

• Height: 9.94 inches
• Width: 5.19 inches
• Depth: 0.84 inches

These dimensions describe the IntelliSkin® product, not the tablet itself. RAM Mounts lists the dimensions in its official specifications.

Materials and Included Hardware

The sleeve uses:

• Polycarbonate
• Thermoplastic Elastomers

The product includes four optional USB Type-C caps and comes in a retail box.

RAM Mounts currently lists the product weight as 0.71 lb.

Samsung A9 IntelliSkin Sleeve Specifications

Specification	Details
SKU	RAM-GDS-SKIN-SAM95-NG
Product	IntelliSkin® Next Gen for Samsung Tab A9
Compatible Device	Samsung Galaxy Tab A9
Product Weight	0.71 lb
Overall Height	9.94″
Overall Width	5.19″
Overall Depth	0.84″
Materials	Polycarbonate and Thermoplastic Elastomers
Hardware Included	(4) Optional USB Type-C Caps
Packaging Type	Retail Box
D-Shape Contact Transfer Speed	Up to USB 3.1 @ 5 Gbps*
External USB-C Transfer Speed	Up to USB 2.0 @ 480 Mbps
Port	External USB-C 2.0
Warranty	3 years

USB 3.1 at 5 Gbps represents the maximum transfer speed that the IntelliSkin® can support. Actual transfer speeds vary according to selected docks, chargers, and device limitations.

Why Choose the Samsung A9 IntelliSkin?

The Samsung A9 IntelliSkin Sleeve combines protection and GDS connectivity in a device-specific solution for the Samsung Galaxy Tab A9.

The hard plastic shell and shock-absorbing rubber provide MIL-STD-810H military-grade drop protection.The integrated GDS connector protects the tablet’s charging port during repetitive docking, while flat ruggedized contacts help reduce dirt accumulation and simplify cleaning.

The external USB-C connection gives users another charging option when a GDS Dock™ is unavailable. The protective USB-C cap also helps keep debris away from the connection during field use.

For users building a GDS setup around the Galaxy Tab A9, compatibility with IntelliSkin® Next Generation docks and GDS Docks™ provides additional docking options.
