RAM® Universal Wheelchair Ball Base - C Size

RAM® Universal Wheelchair Ball Base – C Size

Name: RAM® Universal Wheelchair Ball Base - C Size
Brand: RAM Mounts
SKU: RAM-238-WCT
Availability: InStock

SKU: RAM-238-WCT

UPC: 793442007224

$29.99

In stock

Overview

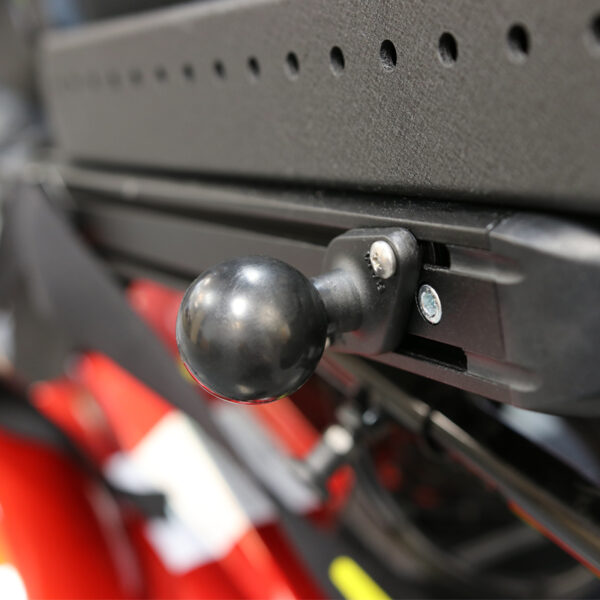

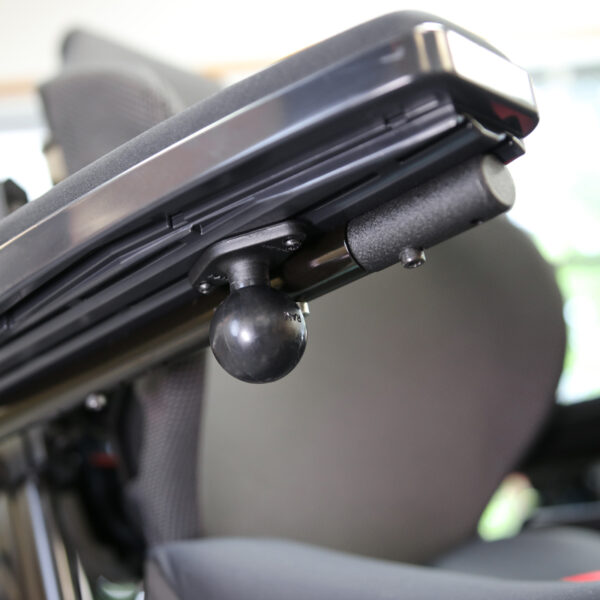

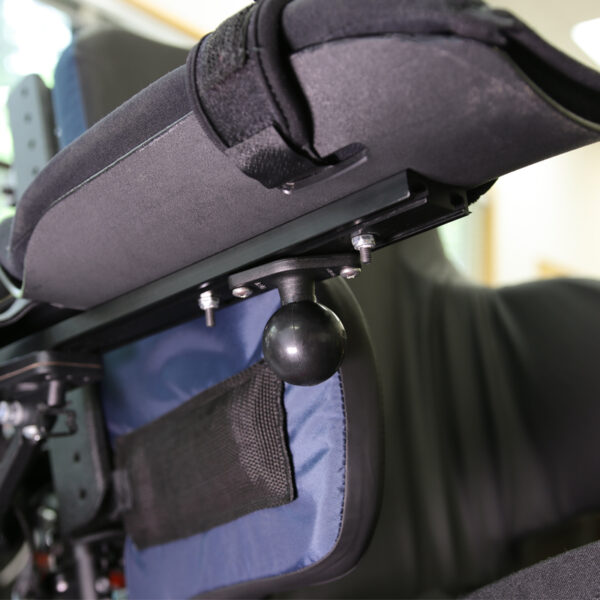

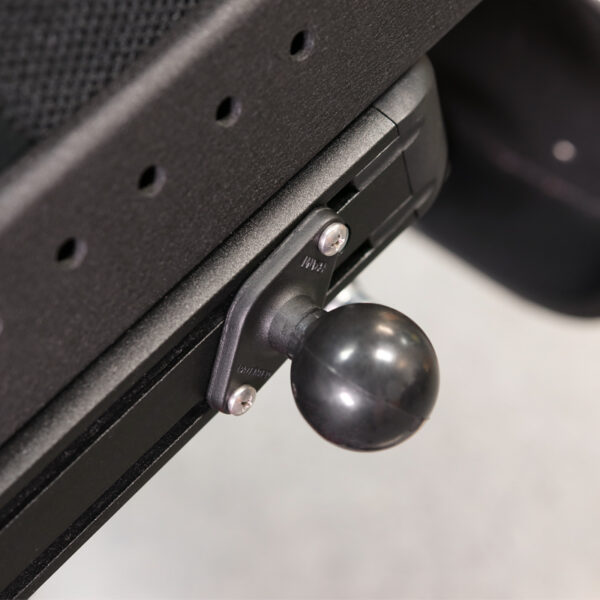

This RAM ball base features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands including Invacare, Permobil, and Quickie, as well as any other universal mounting point. Pair with a variety of compatible RAM arms and extensions to build a custom mount to meet your specific needs.

Features

Specs

Weight	0.30 lbs
Product Weight	0.30 lb
Hardware Included	(2) #10-32 Flat Weld Nuts, (2) #10-32 T-Nuts, (2) #10-32 x 1/2" Machine Screws, (2) M4 Nylock Nuts, (2) M4 Stainless Steel Washers, (2) M4 x 12mm Machine Screws, (2)M4 x 20mm Machine Screws
T Bolt Dimensions	Large: .48" x .95", Small: .375" x .593"
Hole Pattern	2-Hole AMPS 1.912"
Ball Size	C Size (1.5")
Weight Capacity	Heavy-Duty Use: 3 lbs, Standard Use: 4 lbs
Materials	Marine-grade aluminum
Packaging Type	Retail Bag
