RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET401 & ET4x 8″
$238.49
Available on backorder
Available on backorder
Available on backorder
Overview

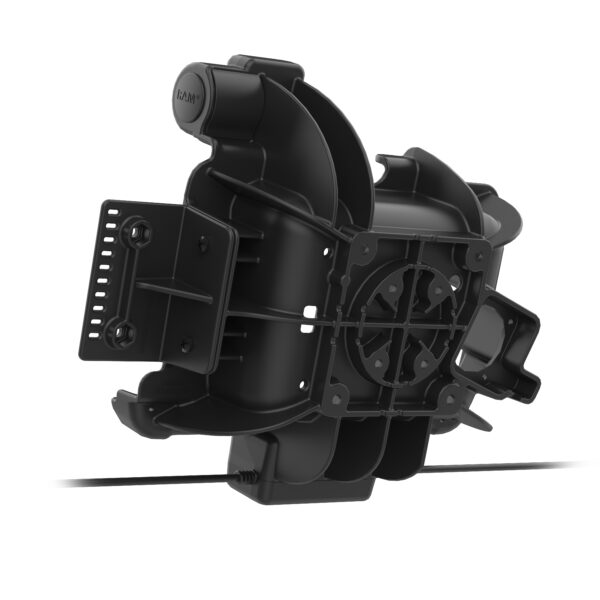

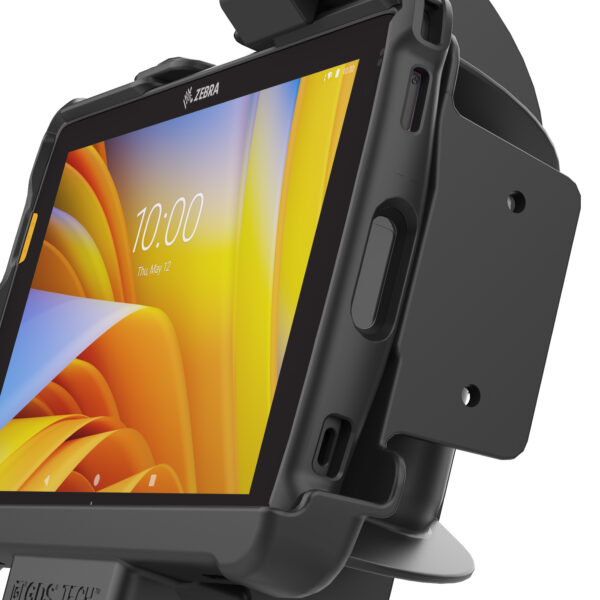

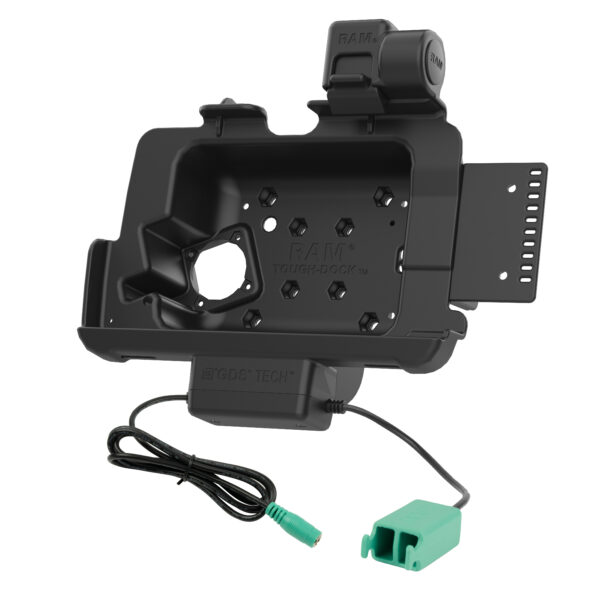

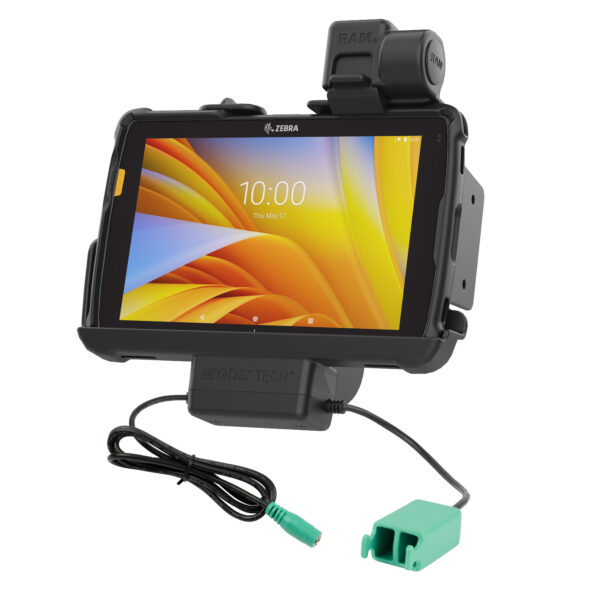

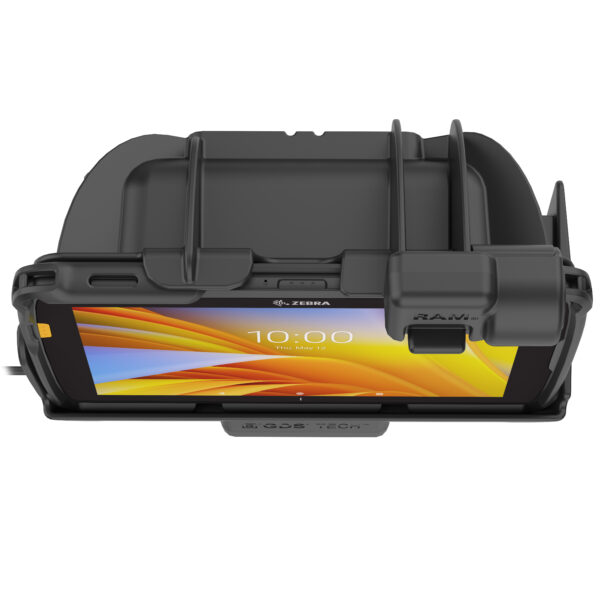

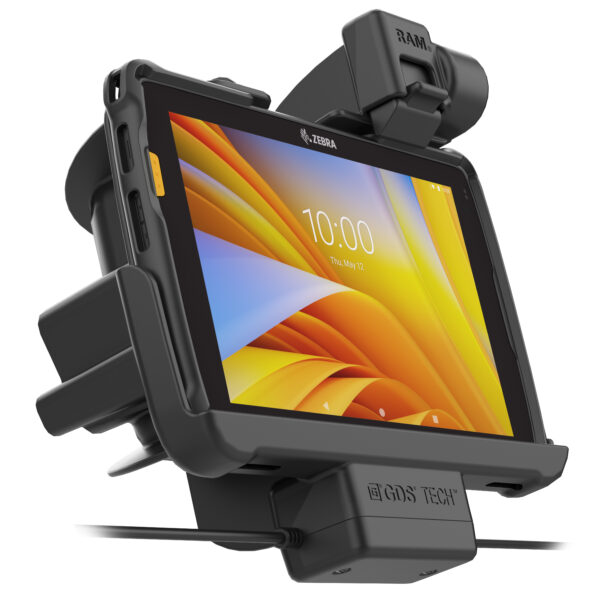

The RAM Tough-Dock Power + Dual USB with Latch for Zebra ET4x 8″ Tablet (RAM-HOL-ZE20PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
Features
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
Compatibility
Compatible Devices
- Zebra ET40 8" Tablet with Rugged Frame
- Zebra ET45 8" Tablet with Rugged Frame
Specs
| Weight | 1.52 lbs |
|---|---|
| Product Weight | |
| Hardware Included | (1) Side bracket for accessory mounting, (2) #8-32 x 1/2" Machine Screws, (2) Small Cable Ties, (4) #10-24 Nylock Nuts, (4) #10-24 x 5/8" Machine Screws, (4) #8-32 x 5/8" Machine Screws, (6) #8-32 Nylock Nuts |
| Hole Pattern | |
| Materials | |
| Packaging Type | |
| Input Connector | |
| Input Cable Length | |
| Output Connector | |
| Output Cable Length | |
| Peripheral Output | |
| Transfer Speed | |
| Certifications |
