RAM® Tab-Tite™ Handlebar U-Bolt Mount for Apple iPad Gen 1-4
$73.49
In stock
In stock
In stock
Overview

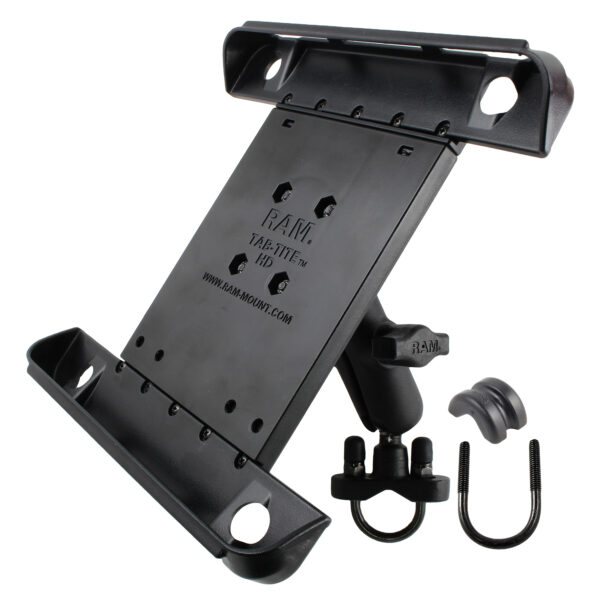

The RAM-B-149Z-TAB3U consists of a zinc coated u-bolt base, double socket arm, round base adapter and Tab-Tite universal clamping cradle. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Features
Compatibility
Compatible Devices
- Apple iPad (1st Generation)
- Apple iPad (2nd Generation)
- Apple iPad (3rd Generation)
- Apple iPad (4th Generation)
- Apple iPad Air 4
- Apple iPad Air 5
- Apple iPad Pro 11"
- Apple iPad Pro 11" (2020)
- Apple iPad Pro 11" (2021)
- ASUS MeMO Pad FHD 10
- ASUS Transformer Pad
- Dell Venue 10 7000
- Dell Venue 11 Pro 7000
- HP ElitePad 900
- HP ElitePad 900 G1
- HP Pro 610
- Lenovo S6000
- Lenovo Tab A10
- Lenovo ThinkPad 10
- Lenovo Yoga Tablet 10
- Lenovo Yoga Tablet 10 HD+
- Lenovo Yoga Tablet 2 (10 inch)
Specs
| Weight | 1.10 lbs |
|---|---|
| Product Weight | |
| Hardware Included | Assembly Hardware, (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) U-Bolt Spacer, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps |
| Holder Dimensions | Depth Range: .13" – .56", Height Range: 8.5" – 11.125", Width Range: 6.38" – 7.75" |
| Clamp Range | |
| Socket To Socket Length | |
| Ball Size | |
| Weight Capacity | |
| Materials | |
| Packaging Type |
