RAM® Strap Hose Clamp Mount with Hardware for Garmin GPSMAP + More
$55.49
In stock
In stock
In stock
Overview

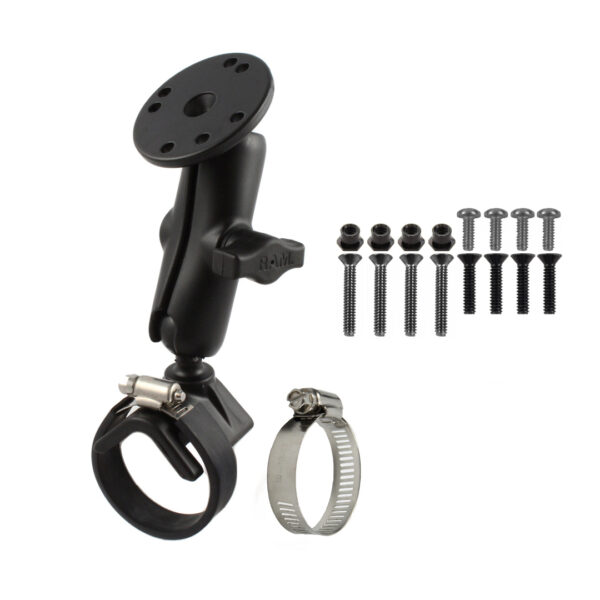

The RAM-108-G1 consists of the 1″ dia. ball and socket system with RAM Universal 2.5″ diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5″ Plate will connect to a large variety of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0″ to a maximum of 1.9″. The 1″ rubber ball is at a right angle to the mount base placing the ball at a right angle to the rail. Included with the base is one 6.0″ and one 8.0″ long metal strap is included with this base along with a 5.5″ long (approximate) strip of rubber to avoid any scratching or marking of your rail.
Features
Compatibility
Compatible Devices
- Garmin StreetPilot III
- Garmin GPSMAP 172-250
Specs
| Weight | 0.76 lbs |
|---|---|
| Product Weight | |
| Hardware Included | (1) #20 Worm Drive Strap Clamp, (1) #28 Worm Drive Strap Clamp, (1) 6" Rubber Strip, (4) #6-32 Nut Inserts, (4) #6-32 x 3/8" Machine Screws, (4) #6-32 x 5/8" Machine Screws, (4) #6-32 x 7/8" Machine Screws |
| Clamp Range | |
| Socket To Socket Length | |
| Hole Pattern | 3-Hole 120-Degree: 1.812" Diameter, 4-Hole AMPS: 1.181" x 1.496" |
| Ball Size | |
| Weight Capacity | |
| Materials | |
| Packaging Type |
