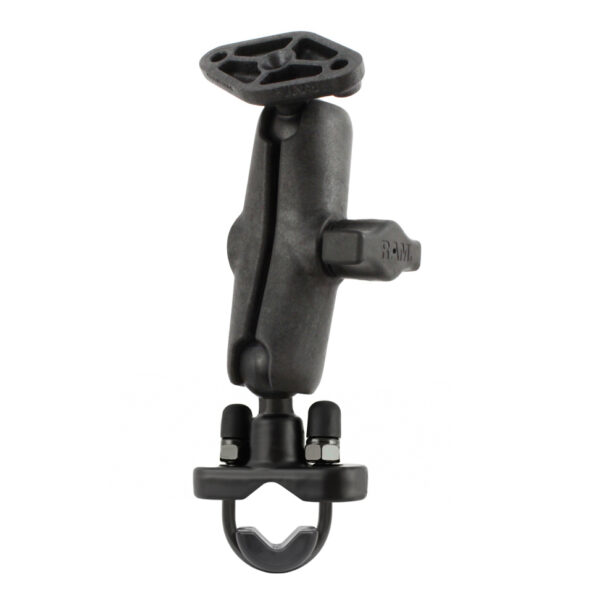

RAM® Handlebar U-Bolt Composite Double Ball Mount with Diamond Plate

Specs

Weight	0.52 lbs
Product Weight	0.52 lb
Hardware Included	(1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) U-Bolt Spacer, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps
Clamp Range	.5" – 1.25" diameter
Socket To Socket Length	3"
Hole Pattern	2-Hole AMPS 1.912"
Ball Size	B Size (1")
Weight Capacity	Heavy-Duty Use: 1 lb, Standard Use: 2 lbs
Materials	High strength composite, Marine-grade aluminum
Packaging Type	Poly Bag

Resources

RAM® U-Bolt Base Assembly Guide

Drawing File - U-Bolt Ball Base

Kit Components

RAM® Composite Diamond Ball BaseRAP-B-238U

$7.49

Add To Cart

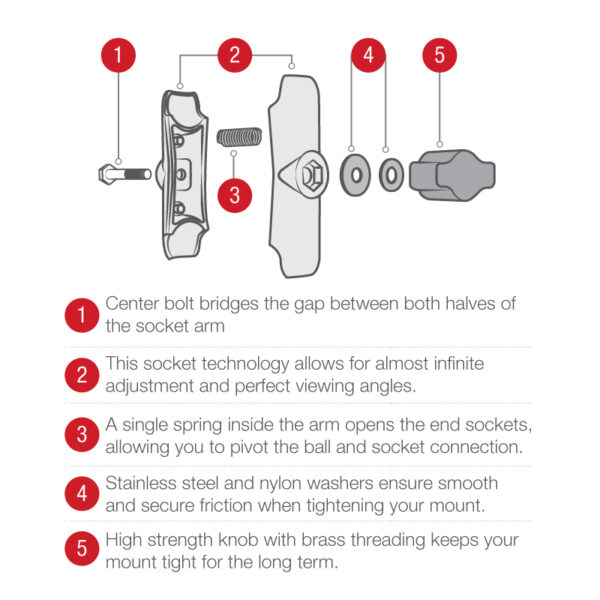

RAM® Composite Double Socket Arm – B Size MediumRAP-B-201U

$12.49

Add To Cart

RAM® Handlebar U-Bolt Base for Rails 0.5″ to 1.25″ in Diameter – B SizeRAM-B-231ZU

$18.49

Add To Cart
