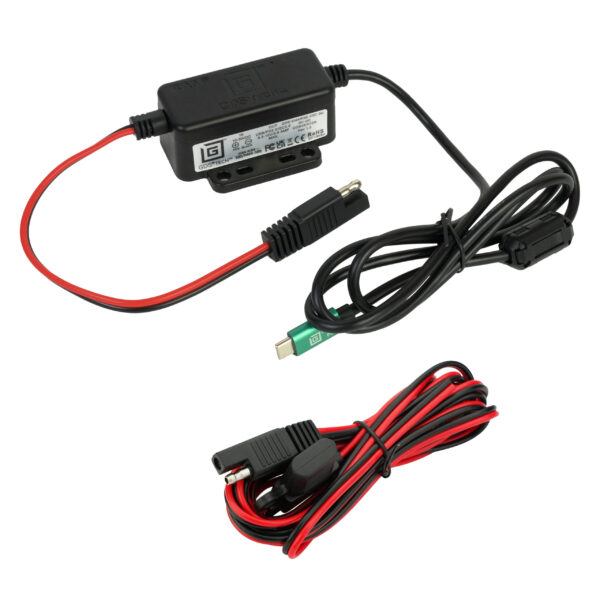

GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C
$116.49
In stock
In stock
In stock
Overview
The GDS® Modular 10-30V Power Delivery (45W) Male USB-C Hardwire Charger (RAM-GDS-CHARGE-V3C-3U) provides power to compatible USB Type-C GDS® vehicle solutions. It connects directly to the vehicle power source, accepts 10–30VDC input and delivers 5–15VDC output at up to 3A. Supporting USB Power Delivery, this charger provides up to 45W of power for compatible applications.
Its modular quick-disconnect design makes future upgrades easier by allowing charger components to be replaced without rewiring the vehicle’s power connection. Part of the GDS® Ecosystem™, this charger features over-voltage, short-circuit and reverse-polarity protection, along with moisture resistance. It includes a 3-year warranty.
Features
- Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5-15VDC
- Supports Power Delivery
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Specs
| Weight | 0.46 lbs |
|---|---|
| Product Weight | |
| Packaging Type | |
| Input Voltage | |
| Output Voltage | |
| Output Current | |
| Input Connector | |
| Input Cable Length | |
| Output Connector | |
| Output Cable Length | |
| Operating Temperature | |
| Storage Temperature | |
| Regulatory | Moisture Resistant, Over Voltage Protection, Reverse Polarity Protection, RoHS Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Short Circuit Protection, WEEE Compliance |
| Certifications | CE Certification, FCC Certification, RCM Certification, UL 62368-1 Certificaton |
Product FAQ
- What is the RAM-GDS-CHARGE-V3C-3U?
It is a GDS® Modular 10-30V Power Delivery (45W) hardwire charger with a male USB Type-C connector, designed to power compatible USB Type-C GDS® vehicle solutions.
- Does the RAM-GDS-CHARGE-V3C-3U support Power Delivery?
Yes. This charger supports USB Power Delivery and is rated for up to 45W.
- What input and output voltages does this charger support?
It accepts 10–30VDC input and provides 5–15VDC output at a maximum current of 3A.
- How does the modular hardwire charger help with upgrades?
Its quick-disconnect design allows charger components to be unplugged and replaced during future upgrades without rewiring the vehicle’s power connection.
- What connector does this GDS charger use?
It has a bare-wire input connection for vehicle power and a male USB Type-C output connector.
- What are the cable lengths?
The input cable is 2.5 meters long, and the output cable is 1 meter long.
- What warranty is included?
RAM Mounts lists a 3-year warranty for this charger.
