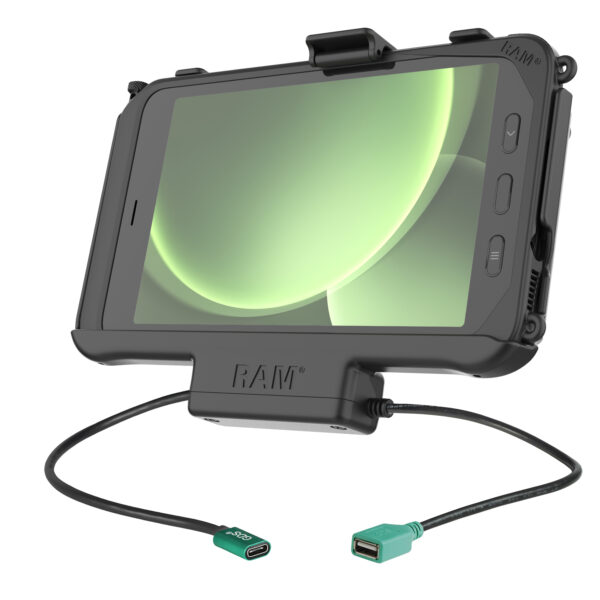

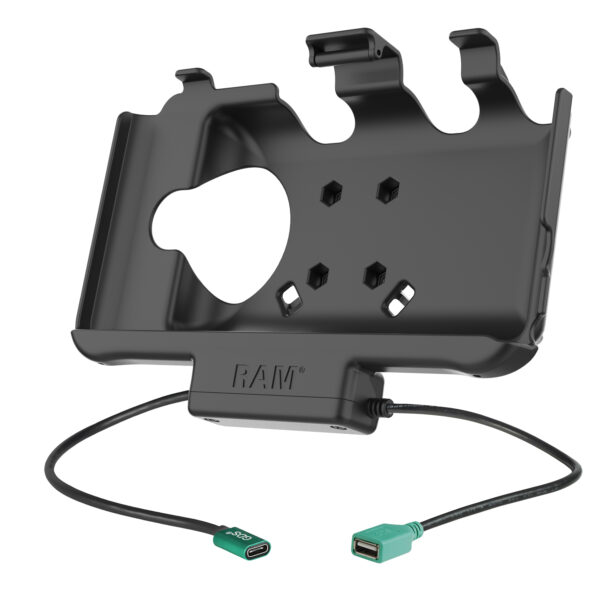

RAM® EZ-Roll’r™ Power + Data Dock Samsung Tab Active5 & 3
$96.99
Available on backorder
Available on backorder
Available on backorder
Overview

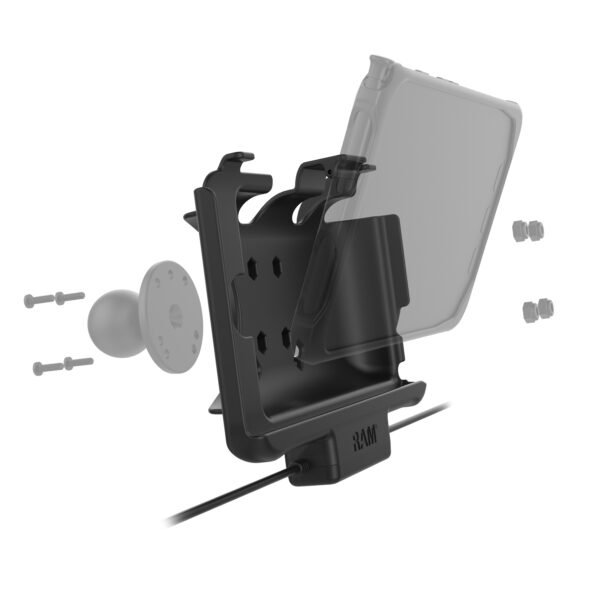

This RAM EZ-Rollr power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle’s USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS Hand-Stand attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
Features

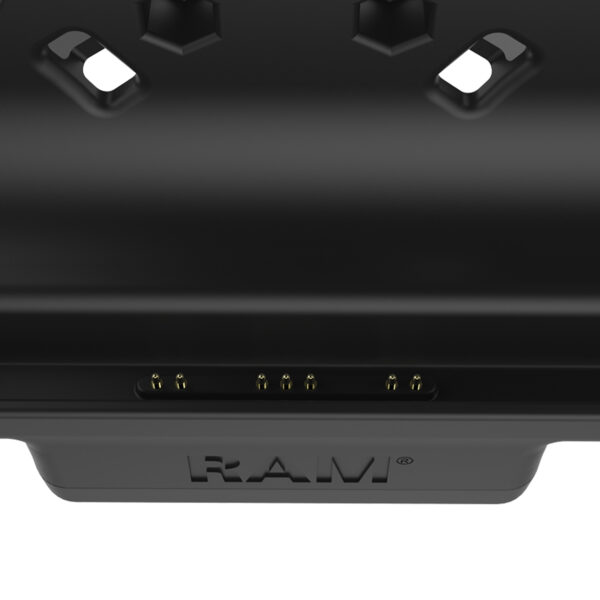

- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

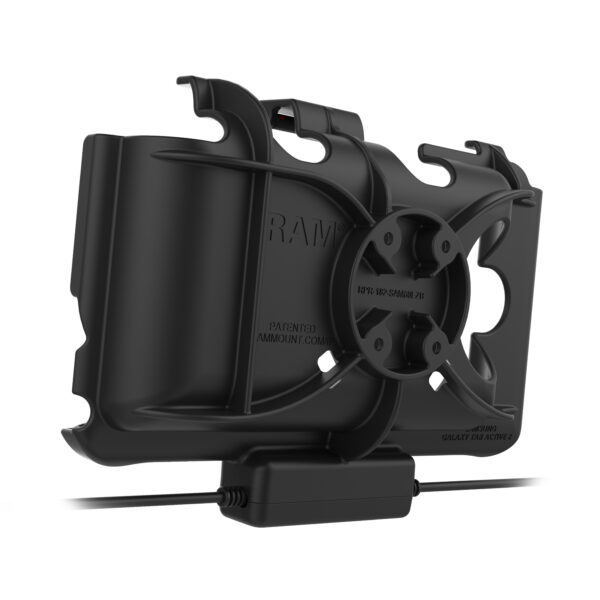

- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Compatibility
Compatible Devices
- Samsung Tab Active5
- Samsung Tab Active3
- Samsung Tab Active2
Specs
| Weight | 0.71 lbs |
|---|---|
| Product Weight | |

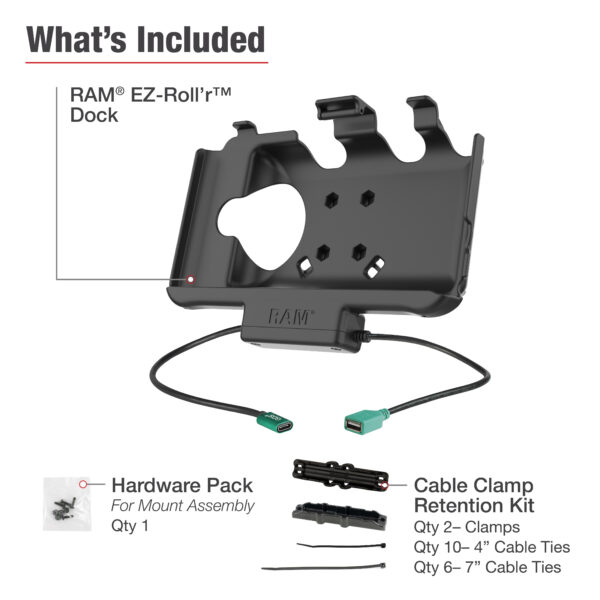

| Hardware Included | (10) Small Cable Ties, (2) Optional Cable Clamp Housings, (4) #8-32 Nylock Nuts, (4) #8-32 x 5/8" Machine Screws, (6) Large Cable Ties |
| Product Dimensions | |
| Hole Pattern | |
| Materials | |
| Packaging Type | |
| Input Voltage | |
| Output Voltage | |
| Power Output | |
| Input Connector | |
| Input Cable Length | |
| Output Connector | |
| Output Cable Length | |
| Peripheral Output | |
| Transfer Speed |
