RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
$135.99
Available on backorder
Available on backorder
Available on backorder
Overview

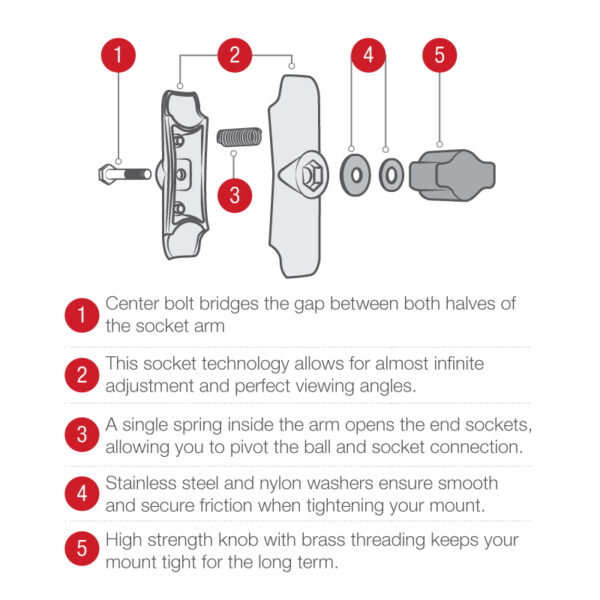

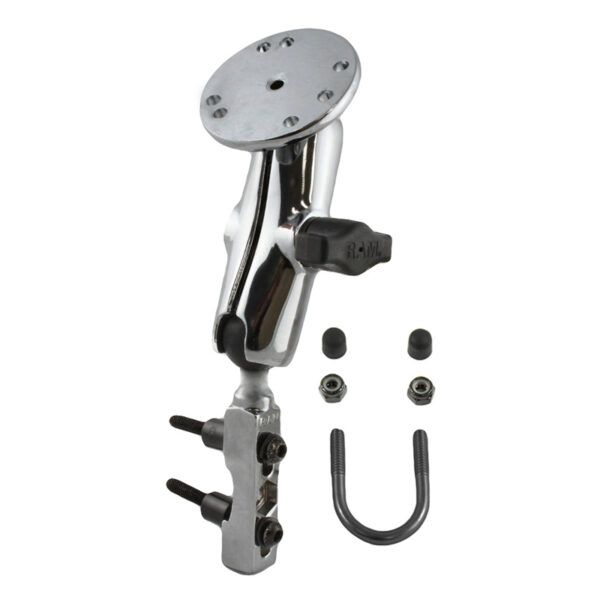

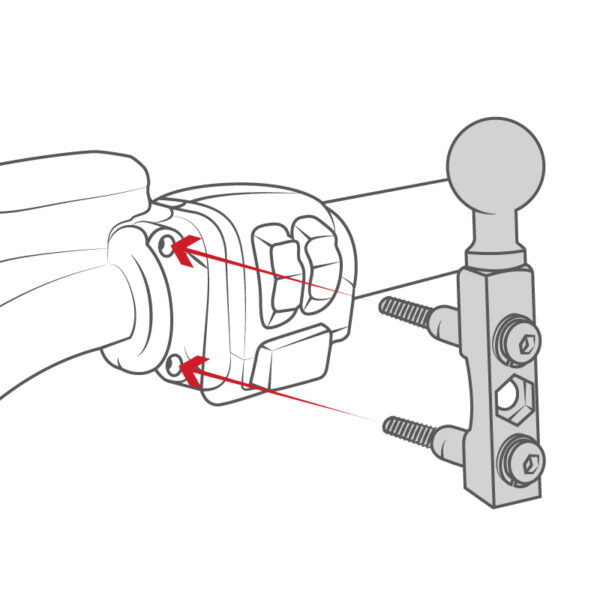

The RAM-B-174CH-202U consists of a chrome 1″ diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1″ in diameter and 2.5″ diameter round base that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
Features
Specs
| Weight | 0.78 lbs |
|---|---|
| Product Weight | |
| Hardware Included | (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) U-Bolt Spacer, (2) #1/4-20 x 2" Hex Bolts, (2) 1/2" Spacers, (2) 1/4" Split Lock Washers, (2) 1/4"-20 Nylock Nuts, (2) 1/4"-20 x 2.5" Hex Bolts, (2) M6 x 55mm Hex Bolts, (2) Rubber Caps |
| Clamp Range | |
| Socket To Socket Length | |
| Hole Pattern | 3-Hole 120-Degree: 1.812" Diameter, 4-Hole AMPS: 1.181" x 1.496" |
| Ball Size | |
| Weight Capacity | |
| Materials | |
| Packaging Type |
