RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
$48.99
In stock
In stock
In stock
Overview

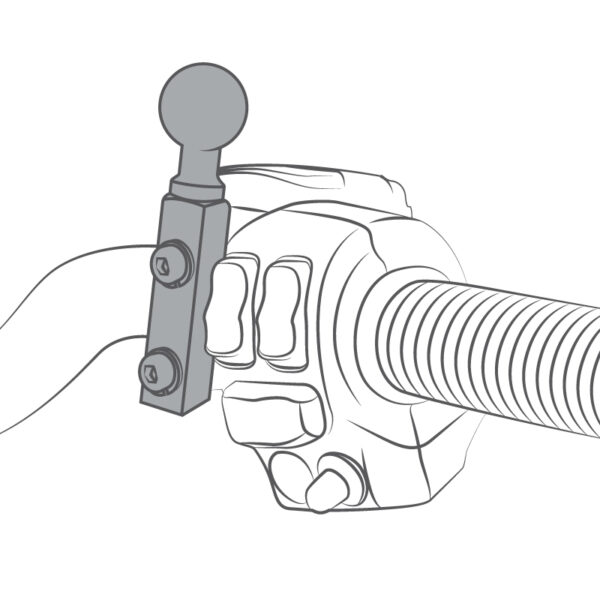

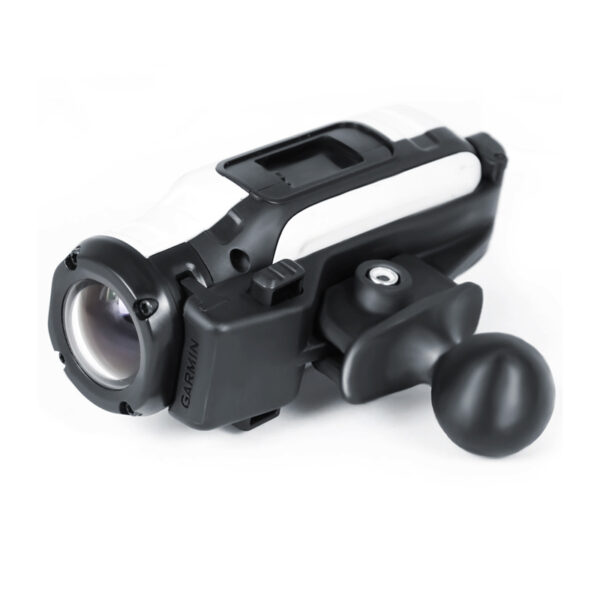

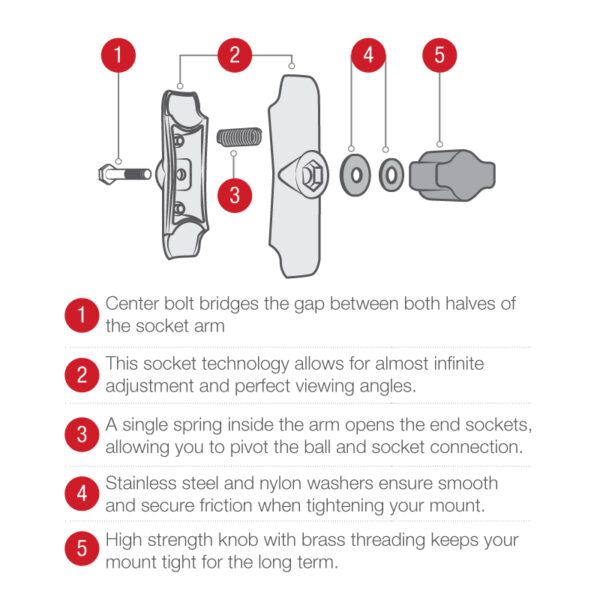

The RAM-B-174-GA63U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, double socket arm and Garmin VIRB camera adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
Features
Compatibility
Compatible Devices
- Garmin VIRB
Specs
| Weight | 0.83 lbs |
|---|---|
| Product Weight | |

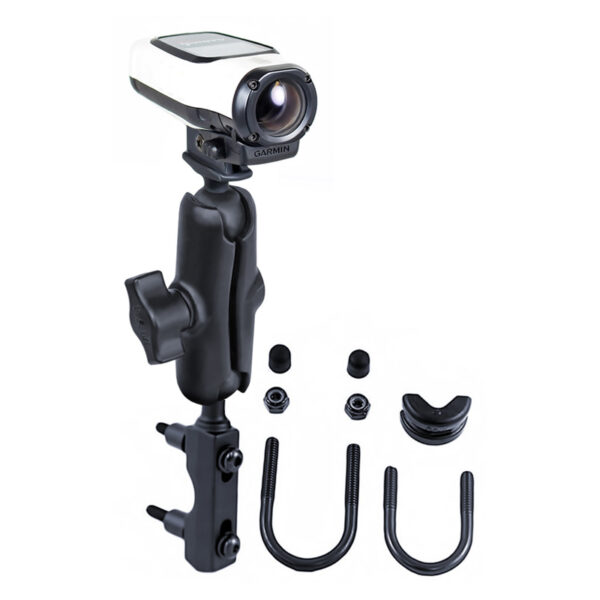

| Hardware Included | Assembly Hardware, (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) U-Bolt Spacer, (2) #1/4-20 x 2" Hex Bolts, (2) 1/2" Spacers, (2) 1/4" Split Lock Washers, (2) 1/4"-20 Nylock Nuts, (2) 1/4"-20 x 2.5" Hex Bolts, (2) M6 x 55mm Hex Bolts, (2) Rubber Caps |
| Clamp Range | |
| Socket To Socket Length | |
| Ball Size | |
| Weight Capacity | |
| Materials | |
| Packaging Type |
