RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium

RAM® Handlebar U-Bolt Double Ball Mount – B Size Medium

SKU: RAM-B-149ZU

UPC: 793442149009

$40.99

In stock

Overview

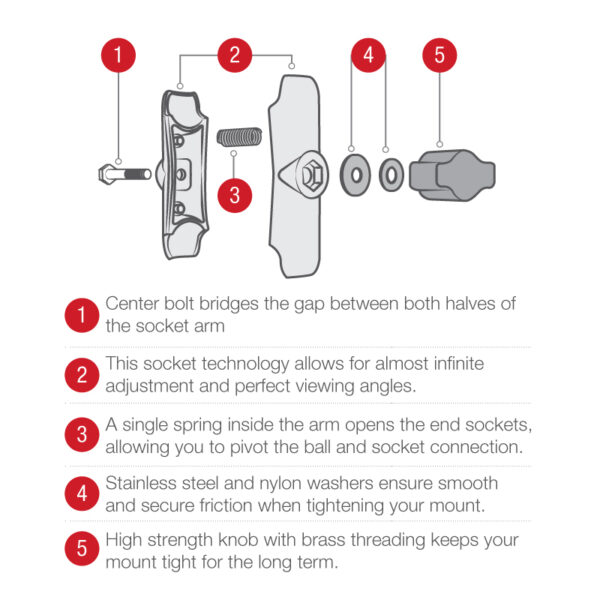

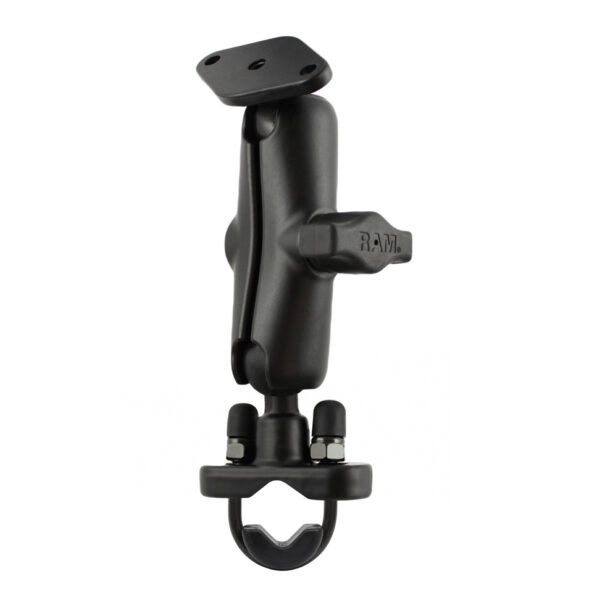

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM components. Included is hardware that will accommodate rails from .5″ to 1.25″ in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.

Features

Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders

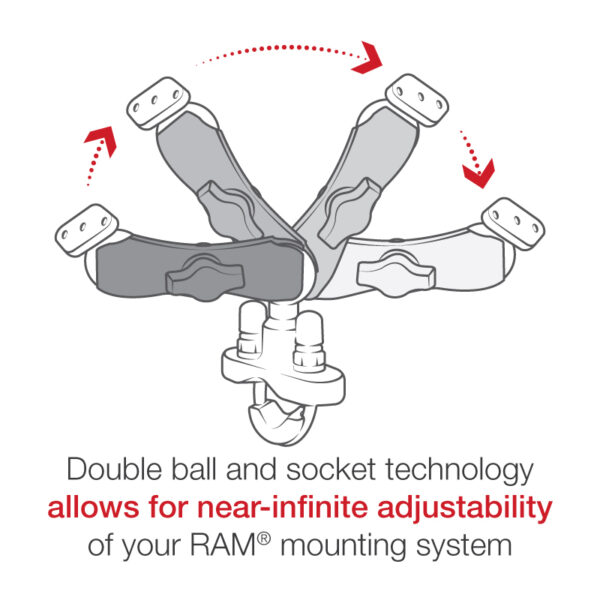

RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Specs

Weight	0.63 lbs
Product Weight	0.63 lb
Hardware Included	(1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) U-Bolt Spacer, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps

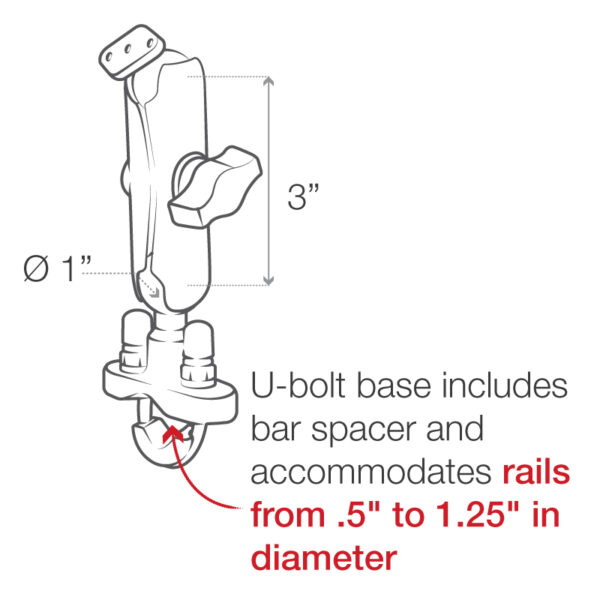

Clamp Range	.5" – 1.25" diameter
Socket To Socket Length	3"
Hole Pattern	2-Hole AMPS 1.912"
Plate Size	2.43" x 1.31"
Ball Size	B Size (1")
Weight Capacity	Heavy-Duty Use: 1 lb, Standard Use: 2 lbs
Materials	Marine-grade aluminum
Packaging Type	Poly Bag
