RAM® Handlebar U-Bolt Base with Double Socket Arm

RAM® Handlebar U-Bolt Base with Double Socket Arm

SKU: RAM-B-149Z-QU1U

UPC: 793442907012

$33.49

In stock

Overview

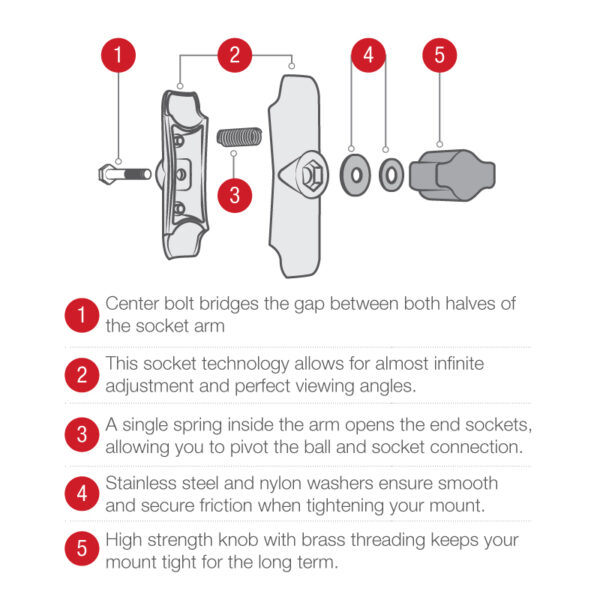

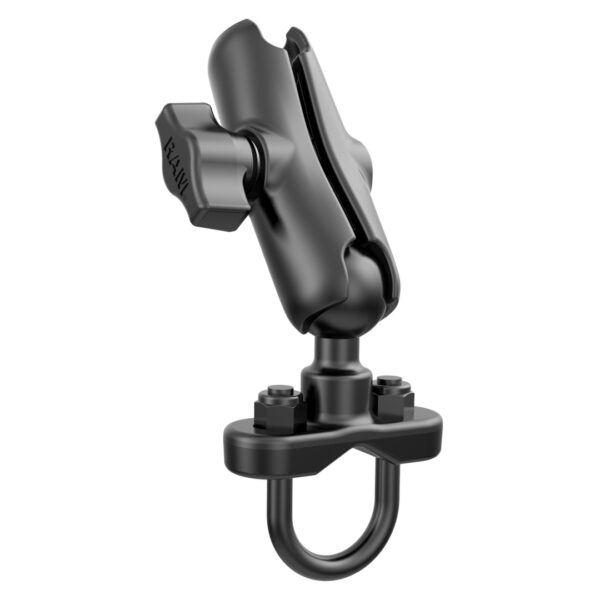

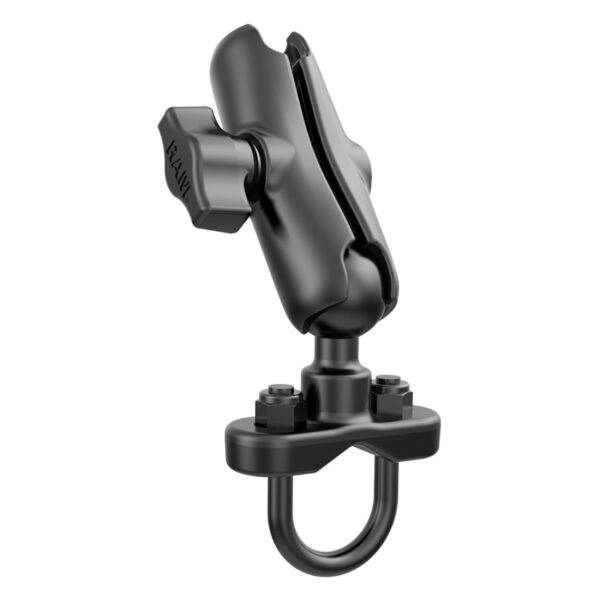

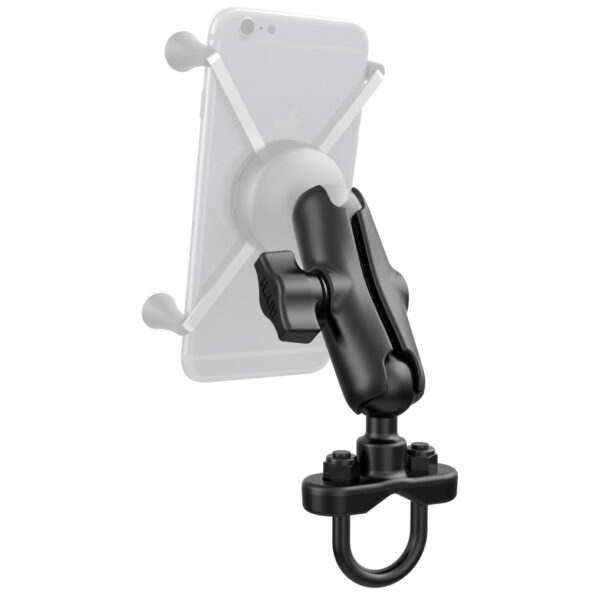

The RAM-B-149Z-QU1 consists of a zinc coated u-bolt base and double socket arm. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The zinc coated u-bolt base Accommodates rails from 0.5″ to 1″ in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. This is a universal mounting solution for the RAM cradles with a 1 inch ball.

Features

Standard RAM® double socket arm provides an ideal overall length of 3.73" and a socket-to-socket length of 3"

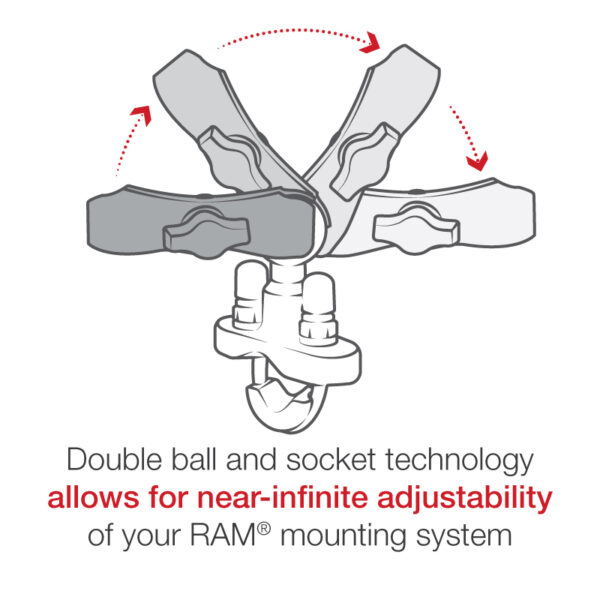

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Specs

Weight	0.56 lbs
Product Weight	0.56 lb
Hardware Included	(1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) U-Bolt Spacer, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps
Clamp Range	.5" – 1.25" diameter
Socket To Socket Length	3"
Ball Size	B Size (1")
Weight Capacity	Heavy-Duty Use: 1 lb, Standard Use: 2 lbs
Materials	Marine-grade aluminum
Packaging Type	Poly Bag
