RAM® ATV/UTV Rail Mount with Garmin VIRB™ Camera Adapter
$49.49
In stock
In stock
In stock
Overview

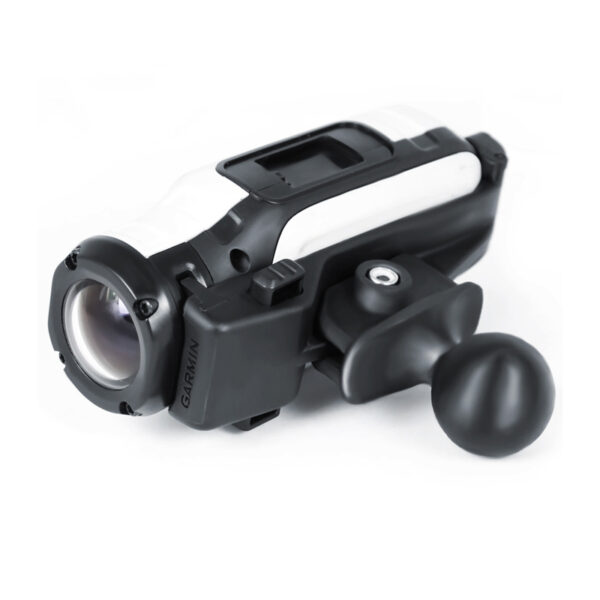

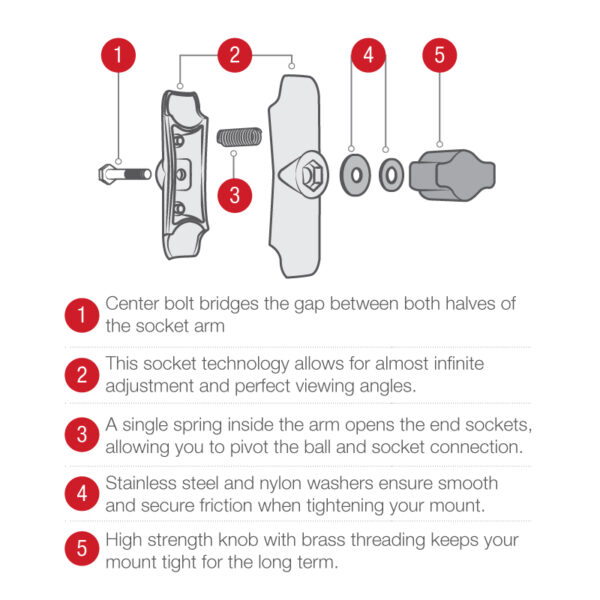

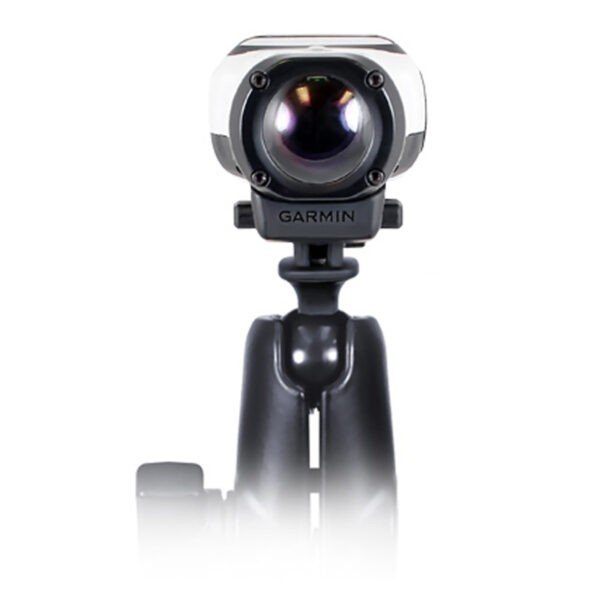

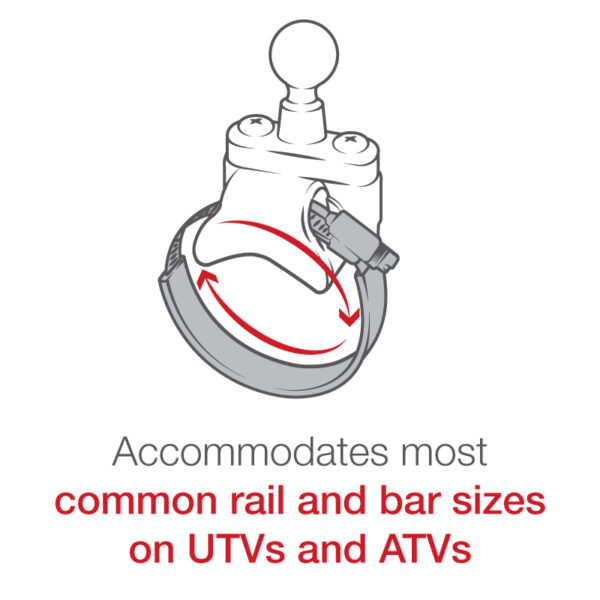

The RAM-B-231Z-2-GA63U consists of a steel strap base, u-bolt bases, double socket arm and Garmin VIRB camera adapter. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV’s using the included hardware. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
Features
Compatibility
Compatible Devices
- Garmin VIRB
Specs
| Weight | 0.67 lbs |
|---|---|
| Product Weight | |

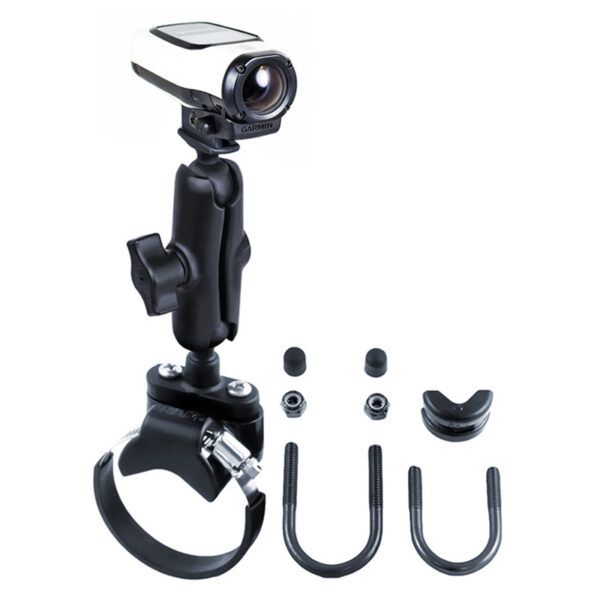

| Hardware Included | Assembly Hardware, (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) 6" Rubber Strip, (1) Strap Clamp Adapter, (1) U-Bolt Spacer, (1) Zinc Worm Drive Strap Clamp, (2) 1/4"-20 Nylock Nuts, (2) 1/4"-20 x 1" Machine Screws, (2) Rubber Caps |
| Clamp Range | Strap Clamp: 1.57" – 3.15" diameter, U-Bolt: .5" – 1.25" diameter |
| Socket To Socket Length | |
| Ball Size | |
| Weight Capacity | |
| Materials | |
| Packaging Type |
