RAM® ATV/UTV Rail Mount with 1/4″-20 Camera Adapter – Medium Arm
$51.99
In stock
In stock
In stock
Overview

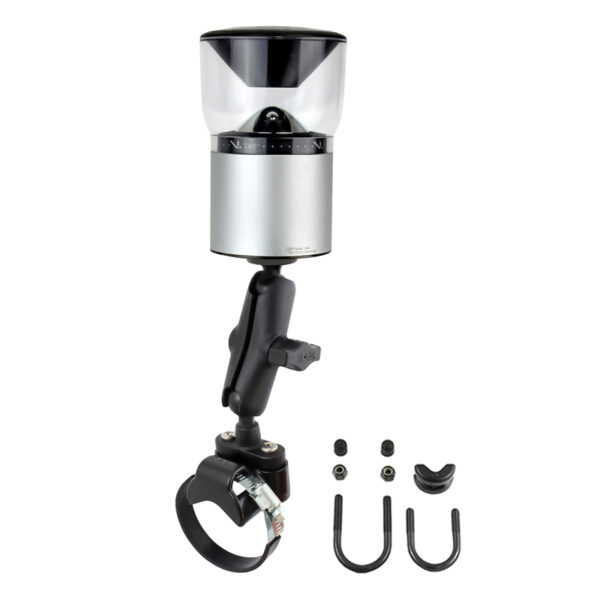

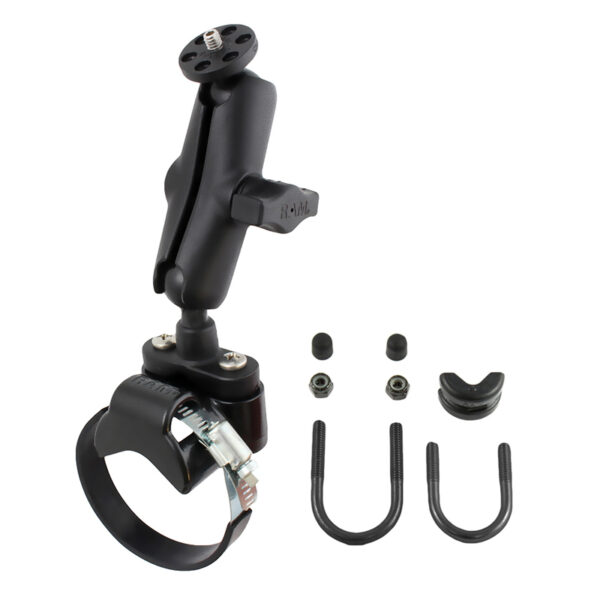

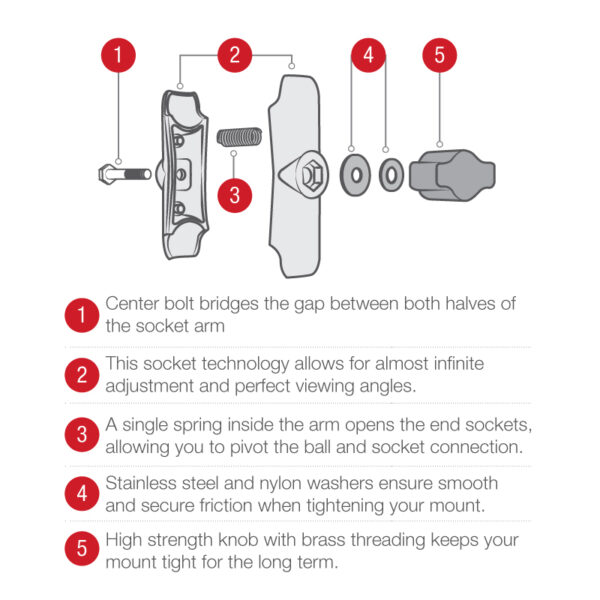

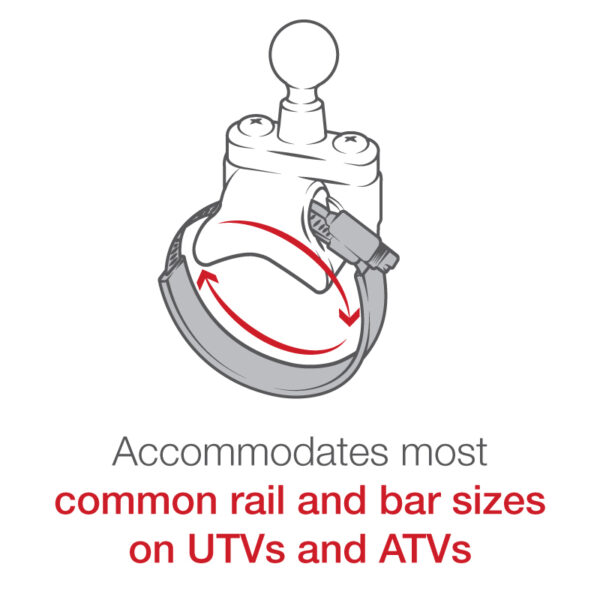

The RAM-B-231Z-2-366U consists of a steel strap base, u-bolt bases, double socket arm and 1″ ball, connected to a round plate with 1/4″-20 camera thread. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV’s using the included hardware. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Features
Compatibility
Compatible Devices
- Cameras that contain 1/4"-20 Female Threaded Hole
Specs
| Weight | 0.76 lbs |
|---|---|
| Product Weight | |
| Hardware Included | (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (1) 6" Rubber Strip, (1) Strap Clamp Adapter, (1) U-Bolt Spacer, (1) Zinc Worm Drive Strap Clamp, (2) 1/4"-20 Nylock Nuts, (2) 1/4"-20 x 1" Machine Screws, (2) Rubber Caps |
| Clamp Range | Strap Clamp: 1.57" – 3.15" diameter, U-Bolt: .5" – 1.25" diameter |
| Socket To Socket Length | |
| Ball Size | |
| Weight Capacity | |
| Materials | |
| Packaging Type |
