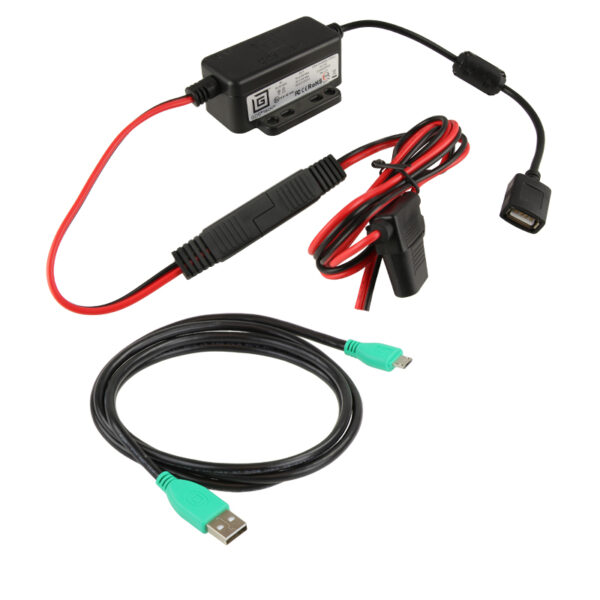

GDS® Modular 10-30V Hardwire Charger with mUSB Cable

Name: GDS® Modular 10-30V Hardwire Charger with mUSB Cable
SKU: RAM-GDS-CHARGE-MUSB-V7B1U
Availability: InStock

SKU: RAM-GDS-CHARGE-MUSB-V7B1U

UPC: 793442110368

$38.49

In stock

Overview

The GDS Modular Hardwire Charger with mUSB cable is the ideal solution for providing power to any GDS vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.

Features

Hardwire charger includes USB 2.0 cable with USB Type-A male connection and mUSB male connection
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
Backed by a 3-year warranty

Specs

Weight	0.45 lbs
Product Weight	0.45 lb
Packaging Type	Poly Bag
Input Voltage	10-30VDC
Output Voltage	5-9VDC*
Output Current	2.5A max
Input Connector	mUSB 2.0 Female
Input Cable Length	1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length	.2 Meter
Operating Temperature	-10°C to +70°C
Storage Temperature	-40°C to +70°C
Regulatory	FCC, CE, UKCA, IC, Moisture Resistant, Over Voltage Protection, Reverse Polarity Protection, RoHS Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Short Circuit Protection, WEEE Compliance
Certifications	E-Mark Certification, IEC/UL 62368-1, RCM Certification
