GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm

Name: GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm
SKU: RAM-GDS-CHARGE-V10-1U
Availability: PreOrder

SKU: RAM-GDS-CHARGE-V10-1U

UPC: 793442019029

$38.49

Available on backorder

Overview

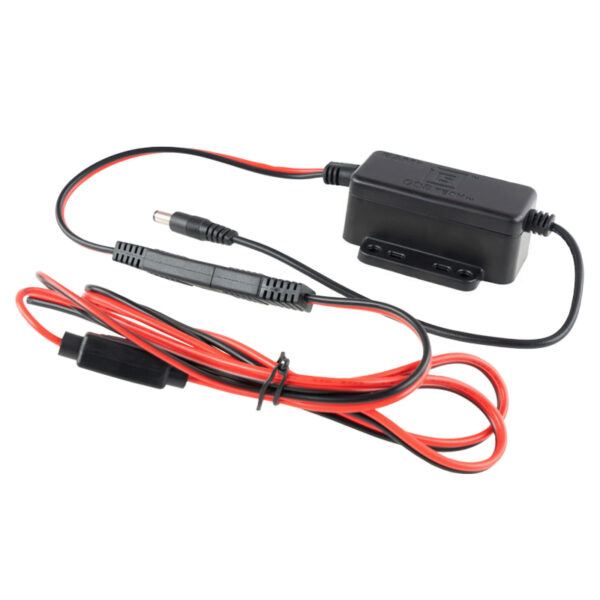

The GDS Modular Hardwire Charger with 5.5mm Large Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications. Always Protected. Always Connected.

Features

Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 12VDC output
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
Backed by a 3-year warranty

Specs

Weight	0.31 lbs
Product Weight	0.31 lb
Packaging Type	Poly Bag
Input Voltage	10-30VDC
Output Voltage	12V (+/- 300mV)
Output Current	3.5A max
Input Connector	Male 5.5mm OD x 2.5mm ID Barrel Connector
Input Cable Length	1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length	.2 Meters
Operating Temperature	-10°C to +70°C
Storage Temperature	-40°C to +70°C
Regulatory	FCC, CE, UKCA, IC, 18AWG Copper Wire, 3A Inline ATC Fuse, IP66, Moisture Resistant, Over Voltage Protection, Reverse Polarity Protection, RoHS Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Short Circuit Protection, WEEE Compliance
Certifications	E-Mark Certification, RCM Certification
