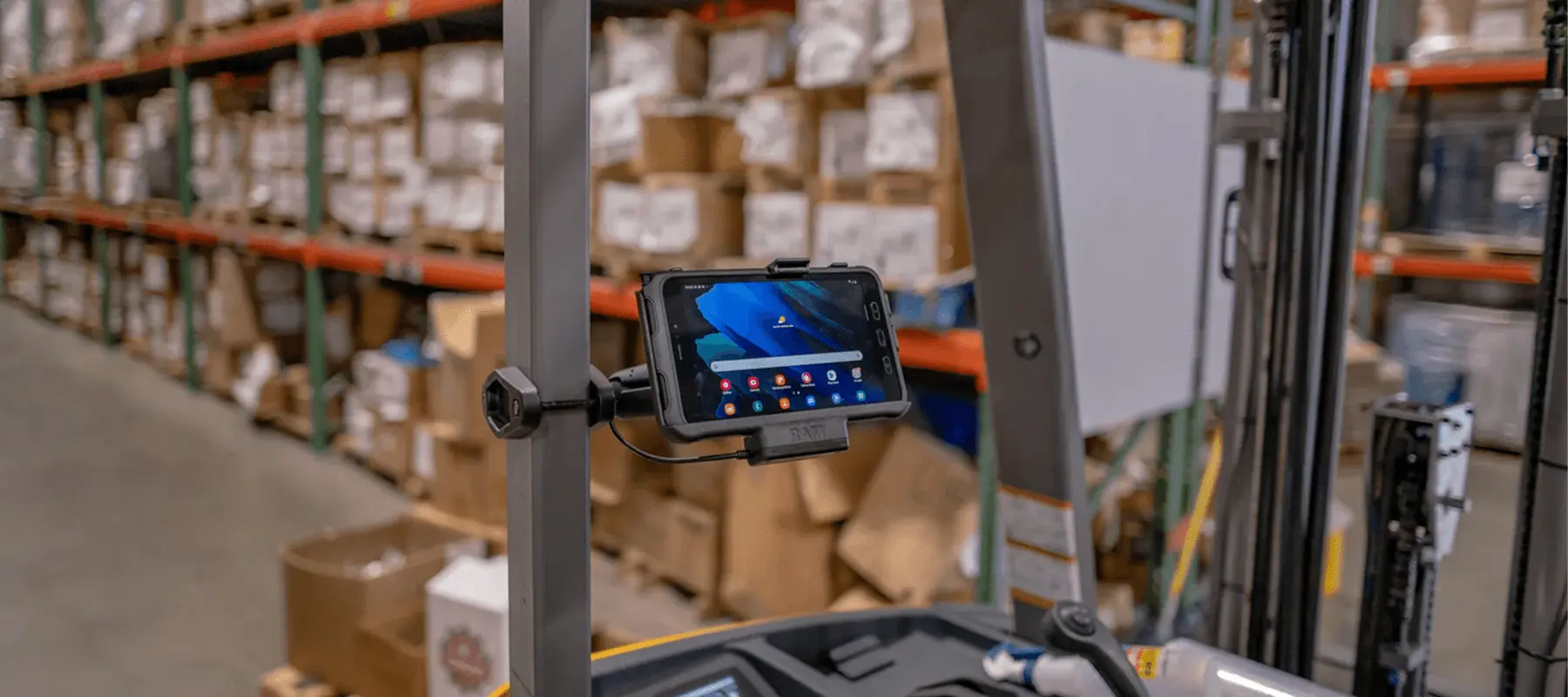

RAM-101U-247 Universal Forklift Mount Kit for Adjustable Device Mounting
The universal forklift mount kit provides a complete mounting solution for tablets, handheld computers, barcode scanners, displays, and other electronic devices on forklifts and material handling equipment. The RAM-101U-247 combines an adjustable post clamp mount, a C Size RAM mounting system, a medium-length double socket arm, and a 2.5-inch round AMPS plate. Its universal square post clamp fits posts from 1.75 inches to 4 inches wide, making the kit suitable for warehouses, distribution centers, manufacturing facilities, and logistics operations.
What Is the RAM-101U-247?
The RAM-101U-247 is a complete universal forklift mounting kit designed to mount electronic devices on forklifts and material handling equipment.
The kit includes:
- A universal square post clamp
- A C Size RAM mount
- A medium-length double socket arm
- A 2.5-inch round AMPS plate
The universal clamp fits square posts from 1.75 inches to 4 inches wide. The C Size RAM system provides near-infinite adjustability through its ball-and-socket technology.
The complete setup provides a mounting solution for different forklift rail sizes.
Key Features of the RAM-101U-247
Universal Square Post Clamp
The RAM-101U-247 includes a universal square post clamp that fits square posts from 1.75 inches to 4 inches wide.
This range allows the same mounting kit to accommodate different square post sizes used with forklifts and material handling equipment.
C Size RAM Mount and Double Socket Arm
The kit includes a C Size RAM mount with a medium-length double socket arm.
The ball-and-socket technology provides near-infinite adjustability, allowing users to position compatible mounted equipment at the desired viewing angle.
2.5-Inch Round AMPS Plate
The RAM-101U-247 includes a 2.5-inch round AMPS plate.
The plate connects to RAM® device holders containing the universal AMPS hole pattern, creating the device-side connection for compatible mounting configurations.
Powder-Coated Marine-Grade Aluminum
The mounting kit uses powder-coated, marine-grade aluminum.
This construction provides durability, corrosion resistance, and reliable long-term performance in demanding industrial environments.
Lifetime Warranty
The RAM-101U-247 is backed by a lifetime warranty.
How the Universal Forklift Mount Kit Works
The RAM-101U-247 combines the square post clamp, C Size double socket arm, and AMPS plate into one complete mounting configuration.
A basic setup consists of:
Square Post → Universal Clamp → C Size Double Socket Arm → 2.5-Inch Round AMPS Plate → Compatible RAM Device Holder
The universal clamp connects the system to a square post. The C Size double socket arm provides adjustable positioning. The AMPS plate connects to compatible RAM device holders containing the universal AMPS hole pattern.
What Devices Can the RAM-101U-247 Mount?
The RAM-101U-247 is designed for mounting:
- Tablets
- Handheld computers
- Barcode scanners
- Displays
- Other electronic devices
The supplied product information identifies forklifts and material handling equipment as the intended mounting environments.
Where Can the RAM-101U-247 Be Used?
This square post forklift mount is designed for applications in:
- Warehouses
- Distribution centers
- Manufacturing facilities
- Logistics operations
- Forklifts
- Material handling equipment
The universal clamp range makes the kit suitable for environments where different forklift rail sizes are used.
Understanding the C Size RAM Mounting System
The RAM-101U-247 includes a C Size RAM mount and a medium-length double socket arm.
The C Size ball-and-socket system provides near-infinite adjustability. This allows users to adjust the position of compatible mounted equipment.
The supplied specifications list a C Size 1.5-inch ball and a 4.66-inch socket-to-socket length.
The mounting system therefore combines:
- C Size 1.5-inch ball
- Medium-length double socket arm
- 4.66-inch socket-to-socket length
- 2.5-inch round AMPS plate
Understanding the AMPS Plate
The RAM-101U-247 includes a 2.5-inch round AMPS plate that connects to RAM device holders containing the universal AMPS hole pattern.
The supplied specifications also list a 4-Hole AMPS pattern measuring 1.181″ x 1.496″.
The AMPS plate provides the connection point between the C Size mounting arm and a compatible RAM device holder.
Benefits of the RAM-101U-247
Fits Multiple Square Post Sizes
The universal clamp fits square posts from 1.75 inches to 4 inches wide.
This makes the kit suitable for applications involving different forklift rail sizes within that range.
Adjustable Device Positioning
The C Size ball-and-socket system provides near-infinite adjustability.
Users can position compatible mounted devices according to the requirements of the mounting setup.
Complete Mounting Configuration
The RAM-101U-247 combines the clamp, double socket arm, and AMPS plate into one complete kit.
Durable Industrial Construction
Powder-coated marine-grade aluminum provides durability and corrosion resistance for demanding industrial environments.
Designed for Material Handling Applications
The kit is designed for forklifts and material handling equipment used in warehouses, distribution centers, manufacturing facilities, and logistics operations.
Choosing an Adjustable Post Clamp Mount
When selecting an adjustable post clamp mount, consider the mounting surface, device connection, and required positioning.
Check the Square Post Width
The RAM-101U-247 fits square posts from 1.75 inches to 4 inches wide.
Verify that the intended square post falls within this specified range.
Check the RAM Ball Size
The kit uses a C Size 1.5-inch RAM ball.
Compatible mounting components should use the appropriate C Size connection.
Check the Device Connection
The kit includes a 2.5-inch round AMPS plate that connects to RAM device holders containing the universal AMPS hole pattern.
Consider the Required Positioning
The included medium-length C Size double socket arm uses ball-and-socket technology to provide near-infinite adjustability.
RAM-101U-247 Weight Capacity
The RAM-101U-247 has two stated weight-capacity ratings:
| Usage | Weight Capacity |
| Heavy-Duty Use | 3 lbs |
| Standard Use | 4 lbs |
These capacities come directly from the supplied product specifications.
RAM-101U-247 Specifications
| Specification | Details |
| SKU | RAM-101U-247 |
| Product | RAM® Universal Forklift Mount Kit |
| Product Weight | 2.33 lbs |
| Clamp Base | 1.75″ – 4″ width |
| Socket-to-Socket Length | 4.66″ |
| Ball Size | Medium length |
| AMPS Plate | C Size (1.5″) |
| Hole Pattern | 3-Hole 120-Degree: 1.812″ Diameter |
| Hole Pattern | 4-Hole AMPS: 1.181″ x 1.496″ |
| Weight Capacity – Heavy-Duty Use | 3 lbs |
| Weight Capacity – Standard Use | 4 lbs |
| Material | Marine-grade aluminum |
| Finish | Powder-coated |
| Hardware | Assembly Hardware |
| Packaging Type | Poly Bag |
| Warranty | Lifetime warranty |
Hardware Included
The RAM-101U-247 includes Assembly Hardware.
The supplied product information does not provide a more detailed breakdown of the assembly hardware, so no additional hardware specifications have been assumed.
Product Weight and Dimensions
The RAM-101U-247 has a listed product weight of 2.33 lbs.
Its socket-to-socket length measures 4.66 inches.
The clamp range covers square posts from 1.75 inches to 4 inches wide.
Why Choose the RAM-101U-247?
The RAM-101U-247 combines a universal square post clamp with a C Size RAM mounting system and AMPS plate.
Key product characteristics include:
- Universal clamp fits square posts from 1.75″ to 4″
- C Size RAM mounting system
- Medium-length C Size double socket arm
- 4.66-inch socket-to-socket length
- 2.5-inch round AMPS plate
- C Size 1.5-inch ball
- 3-Hole 120-Degree hole pattern: 1.812-inch diameter
- 4-Hole AMPS pattern: 1.181″ x 1.496″
- Ball-and-socket technology provides near-infinite adjustability
- Designed for tablets, handheld computers, barcode scanners, displays, and other electronic devices
- Designed for forklifts and material handling equipment
- Powder-coated marine-grade aluminum construction
- 3 lbs heavy-duty-use capacity
- 4 lbs standard-use capacity
- Product weight of 2.33 lbs
- Backed by a lifetime warranty
Frequently Asked Questions
The RAM-101U-247 fits square posts from 1.75 inches to 4 inches wide.
The kit uses a C Size 1.5-inch RAM ball.
The RAM-101U-247 includes a medium-length C Size double socket arm.
The kit includes a 2.5-inch round AMPS plate.
The 2.5-inch round plate connects to RAM® device holders containing the universal AMPS hole pattern.
The supplied product information identifies tablets, handheld computers, barcode scanners, displays, and other electronic devices.
The kit is designed for forklifts and material handling equipment, including applications in warehouses, distribution centers, manufacturing facilities, and logistics operations.
Its ball-and-socket technology provides near-infinite adjustability.
The listed socket-to-socket length is 4.66 inches.
The RAM-101U-247 has a stated capacity of 3 lbs for heavy-duty use and 4 lbs for standard use.
The listed product weight is 2.33 lbs.
The mounting kit uses powder-coated marine-grade aluminum.
Yes. The product is backed by a lifetime warranty.
Conclusion
The RAM-101U-247 universal forklift mount kit provides a complete mounting solution for tablets, handheld computers, barcode scanners, displays, and other electronic devices used with forklifts and material handling equipment. Its universal square post clamp fits posts from 1.75 inches to 4 inches wide, allowing the same kit to accommodate different forklift rail sizes within that range.
The kit combines a C Size 1.5-inch RAM ball, medium-length double socket arm, and 2.5-inch round AMPS plate. Its ball-and-socket technology provides near-infinite adjustability, while powder-coated marine-grade aluminum provides durability and corrosion resistance. The RAM-101U-247 also carries a lifetime warranty and offers stated capacities of 3 lbs for heavy-duty use and 4 lbs for standard use.
