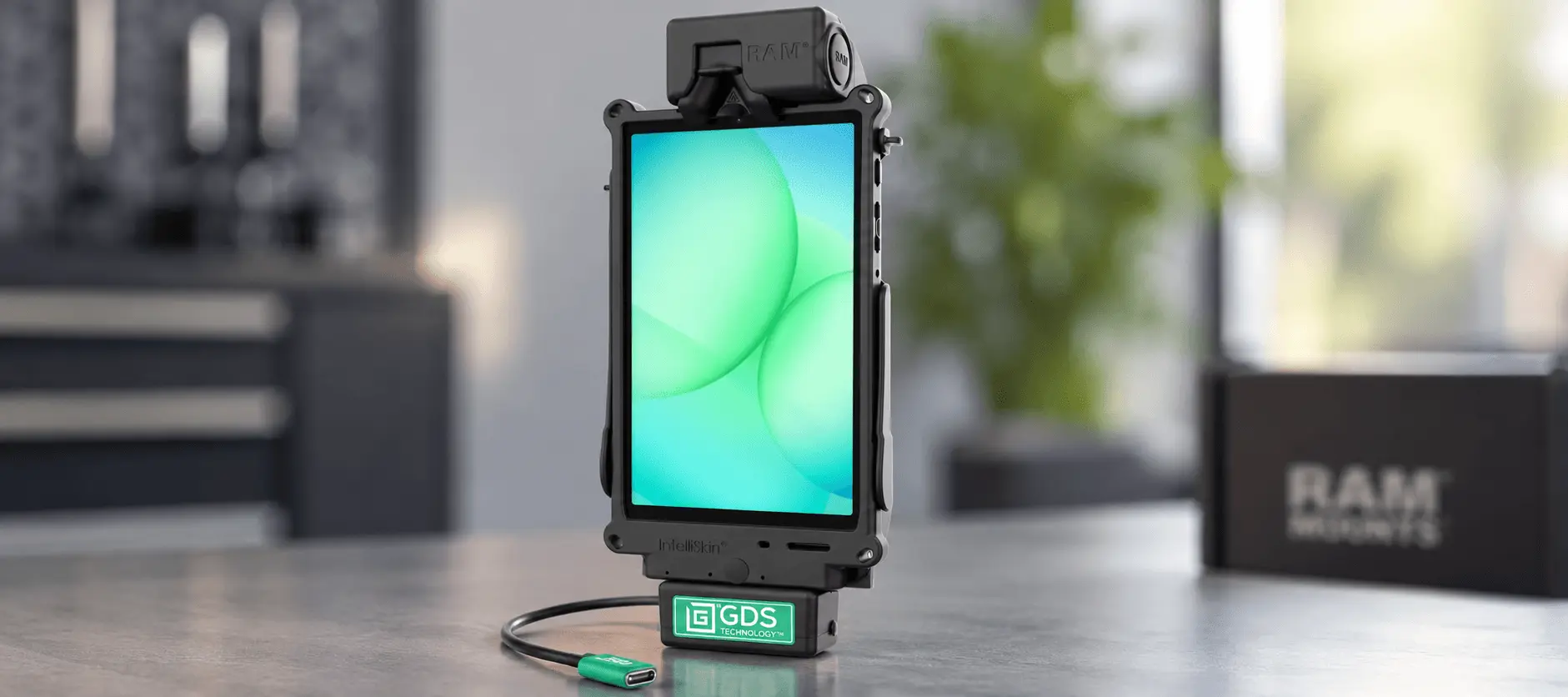

Samsung Galaxy GDS Tough-Dock RAM-GDS-DOCK-SAM80CPU
The Samsung Galaxy GDS Tough-Dock (RAM-GDS-DOCK-SAM80CPU) is a spring-loaded GDS vehicle dock designed for the Samsung Galaxy Tab A11, Tab A9, and Tab A7 Lite 8.7″ when used with IntelliSkin® Next Gen protective sleeves. It features an integrated pogo-pin connector for high-speed charging, a USB Type-C female connector, and a 4-hole AMPS mounting pattern for use with compatible RAM ball and socket systems.
What Is the RAM-GDS-DOCK-SAM80CPU?
The RAM-GDS-DOCK-SAM80CPU is a GDS Tough-Dock designed for Samsung Galaxy tablets. It provides a spring-loaded vehicle docking platform for the Galaxy Tab A11, Galaxy Tab A9, and Galaxy Tab A7 Lite 8.7″ when each tablet is wrapped in a compatible IntelliSkin® Next Gen protective sleeve.
The dock belongs to the GDS Tech™ line and incorporates a pogo-pin connector for high-speed charging. A USB Type-C female connector is integrated into the bottom docking cup to provide power to the dock.
This model is the non-locking Samsung GDS Tough-Dock, distinguishing it from the corresponding locking GDS Tough-Dock model.
Key Features of the Samsung Galaxy GDS Tough-Dock
- Spring-loaded vehicle dock featuring GDS® Technology™.
- Integrated pogo-pin connector for high-speed charging.
- Designed for Samsung Galaxy Tab A11, Tab A9, and Tab A7 Lite 8.7″ with IntelliSkin® Next Gen.
- USB Type-C female connector incorporated into the bottom docking cup.
- Compatible with RAM® ball and socket mounting systems.
- Requires a 4-hole AMPS pattern ball adapter.
- Compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment.
- Includes one USB Type-C to Type-A cable.
- Backed by a 3-year warranty.
Compatibility
The RAM-GDS-DOCK-SAM80CPU is officially compatible with three Samsung Galaxy tablet models.
Samsung Galaxy Tab A11
The dock supports the Samsung Galaxy Tab A11 when it is wrapped in an IntelliSkin® Next Gen protective sleeve.
Explore Samsung Galaxy Tab A9
The Samsung Galaxy Tab A9 is also supported with an IntelliSkin® Next Gen protective sleeve.
Samsung Galaxy Tab A7 Lite 8.7″
The dock supports the Samsung Galaxy Tab A7 Lite 8.7″ with an IntelliSkin® Next Gen protective sleeve.
IntelliSkin® is not included with the dock and is available separately.
How the Samsung Galaxy GDS Tough-Dock Works
The dock uses a spring-loaded design to hold the compatible Samsung tablet in the docking platform. When paired with the appropriate IntelliSkin® Next Gen sleeve, the integrated pogo-pin connector provides the charging connection.
Power enters the dock through its USB Type-C female connector. The dock supports high-speed charging while the compatible tablet is docked.
For vehicle mounting, the dock uses a 4-hole AMPS pattern measuring 1.181″ x 1.496″. It is compatible with RAM ball and socket systems and requires a 4-hole AMPS pattern ball adapter.
The RAM-GDS-DOCK-SAM80CPU does not use a keyed locking mechanism. This differentiates it from the locking version of the Samsung GDS Tough-Dock.
Technical Specifications
| Specification | Details |
| SKU | RAM-GDS-DOCK-SAM80CPU |
| Product Type | GDS Tough-Dock |
| Weight | 1.25 lb |
| Compatible Tablets | Samsung Galaxy Tab A11, Tab A9, and Tab A7 Lite 8.7″ with IntelliSkin Next Gen |
| Hole Pattern | 4-Hole AMPS: 1.181″ x 1.496″ |
| Material | High-strength composite |
| Input Connector | USB Type-C |
| Output Voltage | 5V–20V @ 3A |
| Power Output | 60W |
| Packaging | Poly Bag |
| Warranty | 3 years |
| IntelliSkin | Not included |
Hardware Included
- 1 × USB Type-C to Type-A cable
- 4 × #8-32 Nyloc nuts
- 4 × #8-32 x 5/8″ machine screws
Why Choose the RAM-GDS-DOCK-SAM80CPU?
The Samsung Galaxy GDS Tough-Dock provides a defined GDS docking solution for three compatible Samsung Galaxy tablet models: Tab A11, Tab A9, and Tab A7 Lite 8.7″.
Its integrated pogo-pin connector supports high-speed charging through the compatible IntelliSkin setup, while the USB Type-C female connector provides the dock’s power connection.
The 4-hole AMPS pattern also allows the dock to connect with compatible RAM ball and socket systems through the required AMPS ball adapter. In addition, the dock supports the GDS Hand-Stand Hand Strap and Kickstand attachment.
Because this is the non-locking model, it should be distinguished from the keyed locking Samsung GDS Tough-Dock when selecting the appropriate dock for a particular installation.
Frequently Asked Questions
RAM-GDS-DOCK-SAM80CPU is a GDS Tough-Dock designed for Samsung Galaxy Tab A11, Tab A9, and Tab A7 Lite 8.7″ tablets used with IntelliSkin® Next Gen protective sleeves.
The official compatibility information lists Samsung Galaxy Tab A11, Galaxy Tab A9, and Galaxy Tab A7 Lite 8.7″, each with IntelliSkin® Next Gen.
Yes. The dock features an integrated pogo-pin connector for high-speed charging and a USB Type-C female connector.
No. IntelliSkin® Next Gen is not included with the RAM-GDS-DOCK-SAM80CPU.
No. RAM-GDS-DOCK-SAM80CPU is the non-locking GDS Tough-Dock. RAM Mounts also offers a separate keyed locking version.
The dock uses a 4-hole AMPS pattern measuring 1.181″ x 1.496″ and requires a compatible 4-hole AMPS pattern ball adapter for use with RAM ball and socket systems.
